Shop PANDUIT

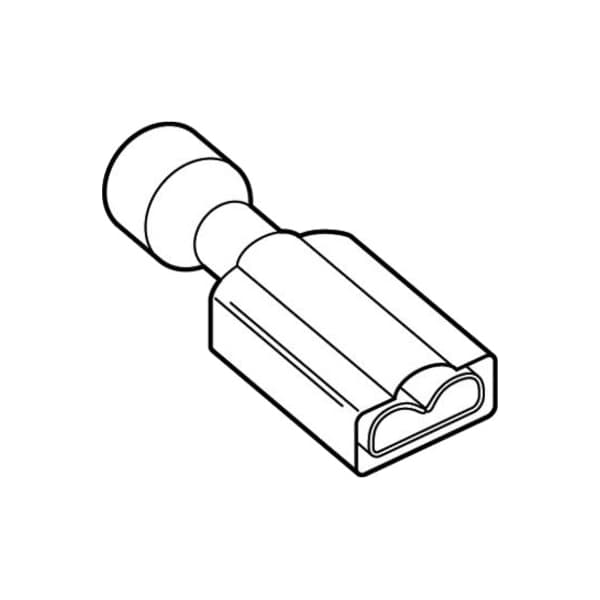

Female Disconnect, Nylon, 22-18AWG, PK50

  • Mfr # DNF18250FIBX-L

  • Zoro # G0765648

product price:
$
50.99
/pk of 50, $1.02/ea

Key Features

For Use With
CT-100
Color Code
Red
Insulation Type
Fully Insulated
Overall Length
0.93 in
Features
Flame Retardant
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
DNF18250FIBX-L
Zoro #
G0765648
UPC #
7498311992
Country of Origin
Mexico

Dimensions

Overall Length
0.93 in
Width
0.4"
Height
0.22 in
Tab Size (In.)
0.250 x 0.032
Insulation Diameter (In.)
0.21
Minimum Metric Conductor Size (mm²)
0.5
Minimum Wire Size (AWG)
#22
Insulation Diameter (mm)
5.3
Minimum Copper Conductor Size (AWG)
#22
Maximum Wire Insulation Diameter (In.)
0.21
Overall Length (In.)
0.93
Maximum Copper Conductor Size (AWG)
#18
Overall Width (mm)
8.9
Wire Strip Length (In.)
11933
Maximum Wire Size (AWG)
#18
Wire Strip Length (mm)
7.1
Tab Size (mm)
6.3 x 0.8
Maximum Wire Insulation Diameter (mm)
5.3
Maximum Metric Conductor Size (mm²)
1
Overall Length (mm)
23.6
Overall Width (In.)
0.35

Details

Item
Female Disconnect,Nylon,22-18AWG,PK50
For Use With
CT-100
Color Code
Red
Insulation Type
Fully Insulated
Features
Flame Retardant
Finish
Tinned
Maximum Operating Temperature (°F)
221
Maximum Voltage (V)
600
Insulation Material
Nylon
Base Material
Brass
Disconnect Type
Female Disconnect
Tongue Angle
Straight
Flammability Rating
UL94-HB
Maximum Voltage (kV)
0.6
Product Type
Disconnect
Seam Type
Butted
Finish/Coating
Tin-Plated
Note
DNF18250FIBX-L replaces DNF18250FIBX-C
Maximum Operating Temperature (°C)
105
Standards Met
UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
Barrel Type
Expanded Entry
Product Name
Terminal Connector
Connector Details
1 x Quick Disconnect
Product Color
Red
Contact Plating
Tin
Product Class
Wire Termination
Max Operating Temperature
105 degrees celsius

Description

Female Disconnect,Nylon,22-18AWG,Package Quantity 50

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
