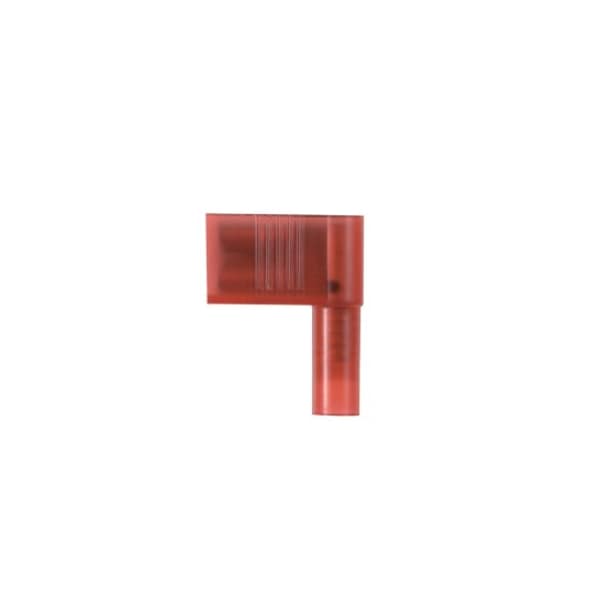

Female Disconnect, Nylon, 22-18AWG, PK50

  • Mfr # DNFR18-250B-L

  • Zoro # G0765788

product price:
$
52.39
/pk of 50, $1.05/ea

Key Features

For Use With
CT-300-1
Color Code
Red
Insulation Type
Fully Insulated
Overall Length
0.78 in
Features
Flame Retardant, Right-angled Connector
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
DNFR18-250B-L
Zoro #
G0765788
UPC #
7498312458
Country of Origin
Mexico

Dimensions

Overall Length
0.78 in
Width
0.4"
Height
0.2 in
Maximum Wire Insulation Diameter (In.)
0.13
Overall Width (In.)
0.62
Minimum Metric Conductor Size (mm²)
0.5
Maximum Wire Size (AWG)
#18
Overall Depth (In.)
0.62
Maximum Copper Conductor Size (AWG)
#18
Overall Length (In.)
0.78
Wire Strip Length (mm)
7.1
Insulation Diameter (mm)
3.4
Minimum Copper Conductor Size (AWG)
#22
Insulation Diameter (In.)
0.13
Overall Width (mm)
15.7
Maximum Wire Insulation Diameter (mm)
3.3
Tab Size (mm)
6.3 x 0.8
Tab Size (In.)
0.250 x 0.032
Overall Length (mm)
19.8
Maximum Metric Conductor Size (mm²)
1
Overall Depth (mm)
15.7
Minimum Wire Size (AWG)
#22
Wire Strip Length (In.)
11933
Depth
0.62 in

Details

Item
Female Disconnect,Nylon,22-18AWG,PK50
For Use With
CT-300-1
Color Code
Red
Insulation Type
Fully Insulated
Features
Flame Retardant, Right-angled Connector
Finish
Tinned
Insulation Material
Nylon
Standards Met
UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
Product Type
Disconnect
Note
DNFR18-250B-L replaces DNFR18-250B-C
Maximum Operating Temperature (°C)
105
Base Material
Brass
Maximum Voltage (V)
600
Finish/Coating
Tin-Plated
Maximum Operating Temperature (°F)
221
Seam Type
Butted
Flammability Rating
UL94-HB
Disconnect Type
Female Disconnect-Right Angle
Maximum Voltage (kV)
0.6
Barrel Type
Funnel
Tongue Angle
Right Angle
Contact Plating
Tin
Connector Details
1 x Quick Disconnect
Product Color
Red
Product Name
Terminal Connector
Product Material
Brass
Product Class
Disconnects

Description

Female Disconnect,Nylon,22-18AWG,PK50, Package Quantity 50
