  11. Fork Terminal, #6 Stud Size, 16 AWG, 600 V, Vinyl Insulated, Red, Crimp Termination Only, 100 PK

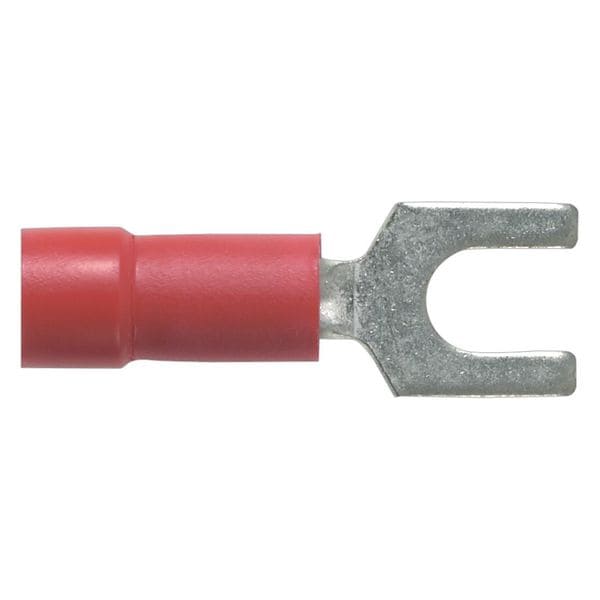

Panduit Fork Terminal, #6 Stud Size, 16 AWG, 600 V, Vinyl Insulated, Red, Crimp Termination Only, 100 PK PV18-6F-CY - main

Fork Terminal, #6 Stud Size, 16 AWG, 600 V, Vinyl Insulated, Red, Crimp Termination Only, 100 PK

  • Mfr # PV18-6F-CY

  • Zoro # G0483205

product price: $66.45
/pk 100, $0.66/ea

Key Features

Terminal Shape
Standard Fork
Termination Style
Crimp Termination Only
Insulation Color
Red
Maximum Wire Size
16 AWG
Minimum Wire Size
22 AWG
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PV18-6F-CY
Zoro #
G0483205
UPC #
-
Country of Origin
Mexico

Dimensions

Maximum Wire Size
16 AWG
Minimum Wire Size
22 AWG
Stud Size
#6
Overall Length
0.86 in
Tongue Width - Wire Connector
0.3 in
Width
0.3"
Tongue Width
0.3 in
Diameter
0.2"
Minimum Metric Conductor Size (mm²)
0.5
Maximum Metric Conductor Size (mm²)
1.5
Maximum Wire Insulation Diameter (In.)
0.15
Tongue Thickness (In.)
0.03
Wire Strip Length (In.)
45062
Tongue Length
0.43 in

Details

Item
Fork Terminal
Terminal Shape
Standard Fork
Termination Style
Crimp Termination Only
Insulation Color
Red
Insulation Type
Vinyl
Contact Material
Copper
Maximum Voltage
600 V
Maximum Operating Temperature
221 Degrees F
Standards
American Bureau of Shipping (ABS), CSA22.2 No. 65, UL 486A - 486B, UL 587H E52164
Features
Brazed Seam Protects Terminal Barrel From Splitting During Crimping Process, Fork Design Provides for Fast and Easy Installation, Insulation Support, Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength
Terminal Connection
Crimp
Max. Temp.
221 Degrees F
Seam
Brazed
Connection Type
Crimp
Connection Material
Copper
Terminal Type
Standard
Wire Range
22 to 16 AWG
For Use With
CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550)
Insulation Dia
0.15 in
Environmentally Friendly
Yes
Connector Plating
Tin
Barrel Type
Funnel
Finish/Coating
Tin-Plated
Note
PV18-6F-CY replaces PV18-6F-C
Base Material
Copper
Sub Brand
Pan-Term
Flammability Rating
UL94V-0
Seam Style
Brazed
Special Features
Brazed Seam Protects Terminal Barrel From Splitting During Crimping Process, Fork Design Provides for Fast and Easy Installation, Insulation Support, Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength

Description

Fork Terminals, Contact Finish Tin, Contact Material Copper, Insulation Color Red, Insulation Material Vinyl, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Maximum Wire Size 16 AWG, Stud Size #6, Termination Style Crimp, UL 94 Flammability Rating V-0, Seam Style Brazed, Standards cULus Listed 587H E52164, Barrel Length 0.43 in, Barrel Style Funnel Entry, Compatible Grainger Part Number 376U11, 38YU60, 38YU61
