  11. Fork Terminal, #6 Stud Size, 18 AWG, 600 V, Nylon Insulated, Red, Crimp Termination Only, 100 PK

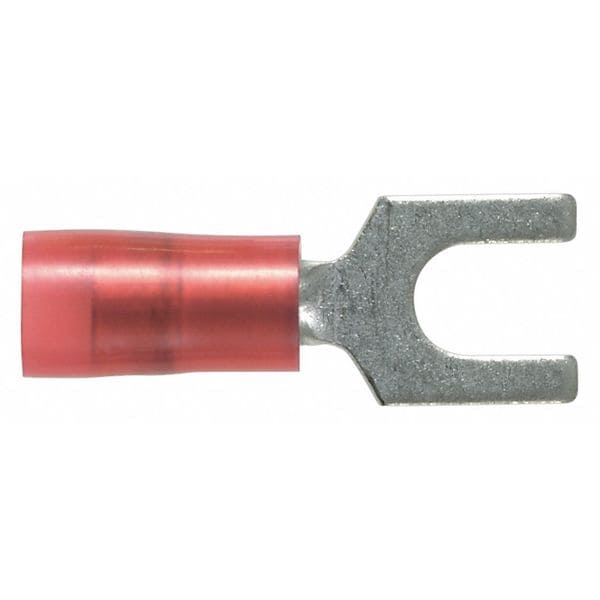

Panduit Fork Terminal, #6 Stud Size, 18 AWG, 600 V, Nylon Insulated, Red, Crimp Termination Only, 100 PK PN18-6F-C - main

Fork Terminal, #6 Stud Size, 18 AWG, 600 V, Nylon Insulated, Red, Crimp Termination Only, 100 PK

  • Mfr # PN18-6F-C

  • Zoro # G0287205

product price: $100.69
/pk 100, $1.01/ea
Free Shipping & Returns

Key Features

Terminal Shape
Standard Fork
Termination Style
Crimp Termination Only
Insulation Color
Red
Maximum Wire Size
18 AWG
Minimum Wire Size
22 AWG
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PN18-6F-C
Zoro #
G0287205
UPC #
074983803002
Country of Origin
Mexico

Dimensions

Maximum Wire Size
18 AWG
Minimum Wire Size
22 AWG
Stud Size
#6
Tongue Width - Wire Connector
0.3 in
Overall Length
0.78 in
Width
0.3"
Tongue Length
0.39 in
Barrel Length
0.39 in
Strip Length
1/4 in
Tongue Thickness
0.03 in
Tongue Width
0.3 in
Diameter
0.2"
Maximum Wire Insulation Diameter (In.)
0.145
Minimum Metric Conductor Size (mm²)
0.5
Wire Strip Length (In.)
11871
Maximum Metric Conductor Size (mm²)
1

Details

Item
Fork Terminal
Terminal Shape
Standard Fork
Termination Style
Crimp Termination Only
Insulation Color
Red
Insulation Type
Nylon
Contact Material
Copper
Maximum Voltage
600 V
Maximum Operating Temperature
221 Degrees F
Standards
CSA LR31212, UL 587H E52164
Max. Temp.
221 Degrees F
Terminal Connection
Crimp
Wire Range
22 to 18 AWG
Seam
Grip Sleeved
Terminal Type
Standard
Connection Type
Crimp
Connection Material
Copper
Features
Barrel of Terminal Internally Beveled to Provide, Fork Design Provides for Fast and Easy Installation, Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Without The Need to Remove Fastener
For Use With
CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550)
Barrel Style
Insulation Grip
Compatible Manufacturer Model Number
CT-100, CT-160, CT-260
Special Features
Fork Design Provides for Fast and Easy Installation Without the Need to Remove Fastener, Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Metal Insulation Grip Sleeve Crimps to Wire Insulation, Providing Protection to the Crimp Joint During High Vibration Applications
Insulation Material
Nylon
Compatible with Series
CT
Seam Style
Butted
Contact Finish
Tin
Compatible with Product Type
Crimp Tool
Insulation Dia
0.145 in
Environmentally Friendly
Yes
Sub Brand
Pan-Term
Flammability Rating
UL94-HB
Base Material
Copper
Barrel Type
Grip Sleeve

Description

Fork Terminals, Contact Finish Tin, Contact Material Copper, Insulation Color Red, Insulation Material Nylon, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Maximum Wire Size 18 AWG, Stud Size #6, Termination Style Crimp, Tongue Length 0.39 in, Seam Style Butted, Standards CSA Certified, UL 587-H, UL Listed, Barrel Length 0.39 in, Barrel Style Insulation Grip, Compatible Grainger Part Number 376T39, Compatible Manufacturer Model Number CT-100, CT-160, CT-260
