  11. Grommet Edging, Solid, 100 ft., 0.099 In.
Panduit Grommet Edging, Solid, 100 ft., 0.099 In. GES99F-A-C - main

Grommet Edging, Solid, 100 ft., 0.099 In.

  • Mfr # GES99F-A-C

  • Zoro # G1707815

product price: $58.09
/ea

Key Features

Grommet Style
Solid
Max. Panel Thickness
0.09 in
Width
0.17 in
Min. Panel Thickness
0.06 in
Color
natural
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GES99F-A-C
Zoro #
G1707815
UPC #
074983405602
Country of Origin
United States

Dimensions

Max. Panel Thickness
0.09 in
Width
0.17 in
Min. Panel Thickness
0.06 in
Length
100 ft
Depth
0.19 in
Length (Straight Wireway)
100 ft
Height
0.19"
Overall Width (mm)
4.3
Maximum Compatible Panel Thickness (In.)
0.099
Overall Height (In.)
0.19
Overall Width (In.)
0.17
Minimum Compatible Panel Thickness (mm)
1.6
Overall Length (m)
30.5
Maximum Compatible Panel Thickness (mm)
2.5
Overall Length (ft.)
100
Minimum Compatible Panel Thickness (In.)
0.062
Overall Height (mm)
4.7

Details

Grommet Style
Solid
Color
natural
Item
Grommet Edging
Material
Polyethylene
Standards
RoHS Compliant
Max. Temp. Rating
122 Degrees F
Min. Temp. Rating
-40 Degrees F
Adhesive Lined
Yes
Temp. Range
-40 to 122°F
Application

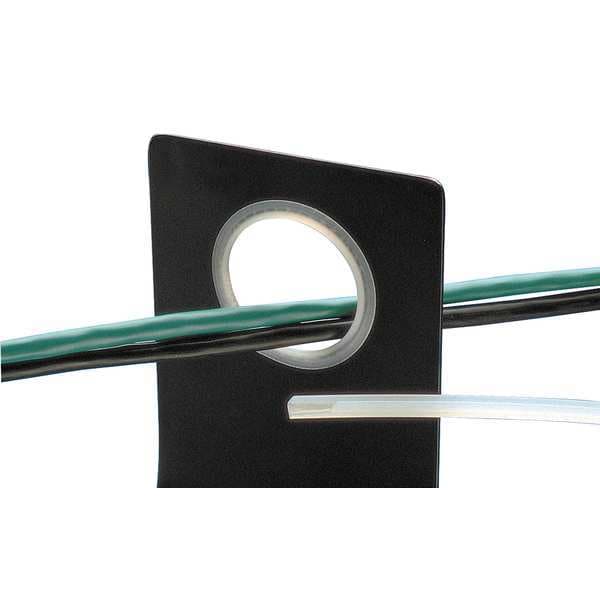

To Protect and Prevent Wires and Cables from Chafing Against Sharp Edges of Panel Walls and Knockouts.
Description/Special Features
Flammability Rating of UL94-HB; Designed for straight edges; Abrasion Protection
Cable Manager Type
Solid Wall
Product Material
Polyethylene
Additional Information
</p>Panel Thickness Range: 0.062 Inch to 0.099 Inch</p>
Product Name
Adhesive Lined Grommet Edging Polyethylene
Product Color
Natural
Product Type
Cable Protection
Flammability Rating
UL94-HB
Note
Designed for straight edges
Minimum Operating Temperature (°C)
-40
Maximum Operating Temperature (°C)
50
Minimum Operating Temperature (°F)
-40
Standards Met
RoHS Compliant
Maximum Operating Temperature (°F)
122
Resistance Properties
Abrasion Protection
Minimum Operating Temperature (°C)
-40
Maximum Operating Temperature (°F)
122
Minimum Operating Temperature (°F)
-40
Maximum Operating Temperature (°C)
50

Description

Grommet Edging, Grommet Style Solid, Length 100 ft, Max. Panel Thickness 0.09 in, Min. Panel Thickness 0.06 in, Color Natural, Material Polyethylene, Depth 0.19 in, Width 0.17 in, Adhesive Lined Yes, Max. Temp. Rating 122 Degrees F, Min. Temp. Rating -40 Degrees F, Standards RoHS Compliant
