This item is Discontinued.

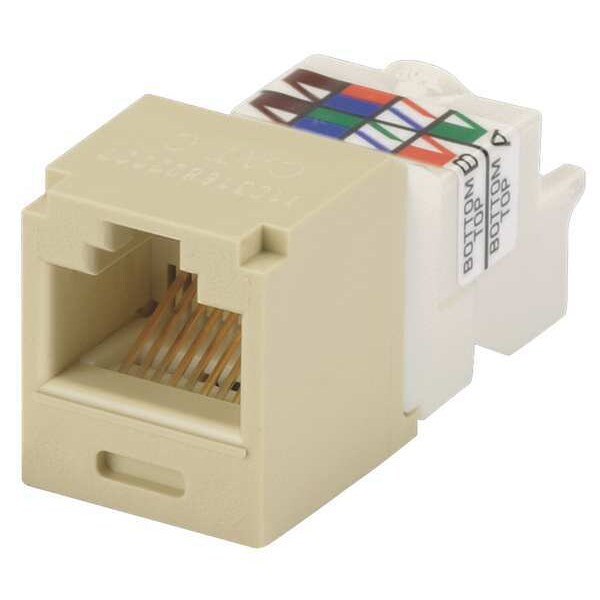

Panduit Jack, Mini Com, Cat 6, Ivory CJ688TPEI

Jack, Mini Com, Cat 6, Ivory (Discontinued)

  • Mfr # CJ688TPEI
  • Zoro # G2559471
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CJ688TPEI
Zoro #
G2559471
UPC #
074983992744
Country of Origin
United States

Dimensions

Height
0.712 in
Depth
1.432 in
Width
0.624 in
Overall Width (In.)
0.63
Overall Length (In.)
1.43
Overall Depth (In.)
1.43
Overall Height (In.)
0.71
Overall Depth (mm)
36.3
Overall Width (mm)
16
Overall Height (mm)
18
Overall Length (mm)
36.3
Overall Width
5/8 in
Overall Depth
1 3/8 in
Overall Height
3/4 in

Details

Item
Modular Jack
Series
Mini Com
Cable Type
CAT6
Material
Plastic
Color
Ivory
For Use With
Mini-Com Faceplate and Panels
Termination Type
Tool-Less
Number of Ports
1
Connector Type
Jack Module - Standard
Termination Style
TP Style
Body Material
ABS
Standards Met
Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
Shield Type
Unshielded (UTP)
Maximum Storage Temperature (°C)
70
Wiring Scheme
T568A/T568B
Maximum Operating Temperature (°C)
65
Performance Level
Category 6
Resistance Properties
Flame/Fire Resistant
Product Type
Network Connector
Minimum Storage Temperature (°C)
-40
Minimum Operating Temperature (°C)
-10
Contact Material
Plated Phosphor Bronze
Module Type
Mini-Com®
Product Color
Electric Ivory
Certifications & Standards
</li> </ul>TIA/EIA-568-B.2-1</li><li>ISO 11801</li></ul>
Product Name
Mini-Com TX6 Plus Modular Insert
Connector Details
1 x RJ-45 Network Female
Product Line
Mini-Com
Minimum Storage Temperature (°F)
-40
Maximum Operating Temperature (°F)
149
Minimum Operating Temperature (°F)
14
Sub Brand
Pan-Net®
Maximum Storage Temperature (°F)
158
RCA Insulator Color
Ivory
Standards
ANSI/TIA-568.2-D, IEC 60603-7, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt Type 3 and Type 4, ISO 11801, RoHS Compliant, UL 1863, UL 2043
Compatible Cable Performance Category
6
Compatible Connector Type
RJ45

Description

Modular Jack, Termination Type Tool-Less, Compatible Cable Performance Category 6, Compatible Connector Type RJ45, Color Ivory, RCA Insulator Color Ivory, Number of Ports 1, Overall Depth 1 3/8 in, Overall Height 3/4 in, Overall Width 5/8 in, Resistance Properties Flame/Fire Resistant, Standards ANSI/TIA-568.2-D, IEC 60603-7, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt Type 3 and Type 4, ISO 11801, RoHS Compliant, UL 1863, UL 2043
