  11. Lug Compression Connector, 300 kcmil Max, Standard Barrel, Copper, White

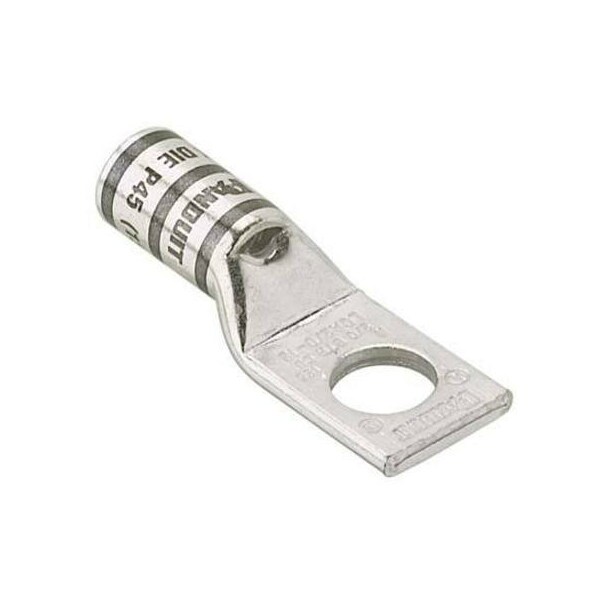

Panduit Lug Compression Connector, 300 kcmil Max, Standard Barrel, Copper, White LCA300-38-X - main

Lug Compression Connector, 300 kcmil Max, Standard Barrel, Copper, White

  • Mfr # LCA300-38-X

  • Zoro # G0771622

product price: $14.48
/ea

Key Features

Cable Size
300 kcmil
Connector Type
Standard Barrel
Width
1.19"
Material
Copper
Length
2.94"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LCA300-38-X
Zoro #
G0771622
UPC #
7498390196
Country of Origin
Mexico

Dimensions

Cable Size
300 kcmil
Width
1.19"
Length
2.94"
Overall Length
2.94 in
Stud Hole Size (mm)
9.5
Wire Strip Length (mm)
38.1
Barrel Length (mm)
36.6
Barrel Length (In.)
1.44
Overall Length (mm)
74.7
Tongue Thickness (mm)
4.1
Tongue Width (In.)
1.19
Wire Strip Length (In.)
1.5
Tongue Thickness (In.)
0.16
Overall Length (In.)
2.94
Tongue Width (mm)
30.2
Stud Hole Size (In.)
44993
Copper Code Conductor Size (kcmil)
300
Tongue Width
1.19 in
Barrel Size
Standard
For Wire Size
300 kcmil

Details

Connector Type
Standard Barrel
Material
Copper
Color Code
White
Item
Lug Compression Connector
Die Code
17
Standards
C22.2 No. 65-13, 486A-486B File #E52164
Features
Angled Connector, Corrosion Resistant
Burndy Die Index Number
17
Product Type
Copper Compression Connectors - Lugs
Tongue Type
Standard
Maximum Voltage (kV)
35
Tongue Angle
Straight
UL Temperature Rating (°C)
90
Panduit Die Index Number
P66
Finish/Coating
Tin-Plated
Base Material
Copper
Connector Details
1 x Terminal
Product Material
Copper
Connector Plating
Tin
Product Name
Terminal Connector
Product Class
Lugs, Splices, Split Bolts & Accessories
For Conductor Material
Copper

Description

Lug Compression Connector,300 Kcmil
