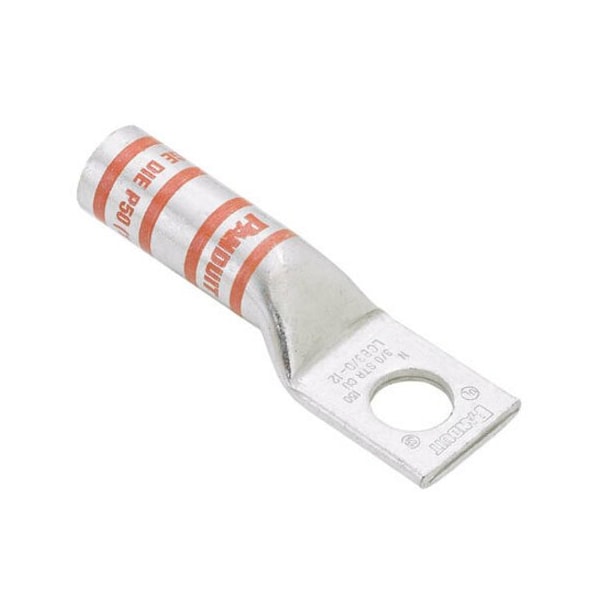

Lug Compression Connector, 350 kcmil Max, 1 to 2 in Stud, Long Barrel, Copper, Red
- Mfr # LCB350-12-X
- Zoro # G0774687
product price:Â
$
19.99
/ea
Key Features
For Wire Size
350 kcmil
For Conductor Material
Copper
For Stud Size
1 to 2 in
Material
Copper
Barrel Size
Long
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- LCB350-12-X
- Zoro #
- G0774687
- UPC #
- 7498390155
- Country of Origin
- Mexico
- Item
- Lug Compression Connector
- For Conductor Material
- Copper
- Material
- Copper
- Tongue Angle
- Straight
- Die Code
- 18
- Color Code
- Red
- Standards
- C22.2 No. 65-13, 486A-486B File #E52164
- Connector Type
- Long Barrel
- Features
- Angled Connector, Corrosion Resistant
- Connection Material
- Tin
- Connection Type
- 1 x Terminal
- Burndy Die Index Number
- 18
- Maximum Voltage (kV)
- 35
- Base Material
- Copper
- Tongue Type
- Standard
- Panduit Die Index Number
- P71
- Finish/Coating
- Tin-Plated
- UL Temperature Rating (°C)
- 90
- Product Type
- Copper Compression Connectors - Lugs
- Product Material
- Copper
- Product Name
- Terminal Connector
- Connector Plating
- Tin
- Connector Details
- 1 x Terminal
- Product Class
- Lugs, Splices, Split Bolts & Accessories
Dimensions
- For Wire Size
- 350 kcmil
- For Stud Size
- 1 to 2 in
- Barrel Size
- Long
- Tongue Width
- 1.28 in
- Cable Size
- 350 kcmil
- Length
- 4.11 in
- Width
- 1.28 in
- Overall Length
- 4.11 in
- Wire Strip Length (In.)
- 2.31
- Stud Hole Size (In.)
- 1 to 2
- Stud Hole Size (mm)
- 12.7
- Tongue Thickness (In.)
- 0.17
- Overall Length (In.)
- 4.11
- Tongue Width (In.)
- 1.28
- Barrel Length (mm)
- 56.9
- Barrel Length (In.)
- 2.24
- Tongue Thickness (mm)
- 4.3
- Overall Length (mm)
- 104.4
- Tongue Width (mm)
- 32.5
- Copper Code Conductor Size (kcmil)
- 350
- Wire Strip Length (mm)
- 58.7
Description
Lug Compression Connector,350 Kcmil
