  11. Lug Compression Connector, 4 to 2 AWG Max, Standard Barrel, Copper, Gray

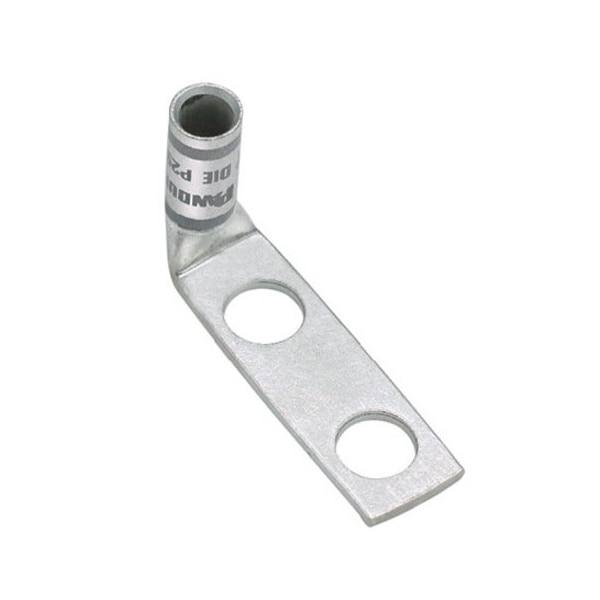

Panduit Lug Compression Connector, 4 to 2 AWG Max, Standard Barrel, Copper, Gray LCD4-14AF-L - main

Lug Compression Connector, 4 to 2 AWG Max, Standard Barrel, Copper, Gray

  • Mfr # LCD4-14AF-L

  • Zoro # G0777539

product price: $9.35
/ea

Key Features

Cable Size
4 to 3 AWG STR, 2 AWG SOL
Connector Type
Standard Barrel
Width
0.55"
Material
Copper
Length
1.74"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LCD4-14AF-L
Zoro #
G0777539
UPC #
7498356772
Country of Origin
Mexico

Dimensions

Cable Size
4 to 3 AWG STR, 2 AWG SOL
Width
0.55"
Length
1.74"
Overall Length
1.74 in
Outer Diameter (mm)
9.65
Tongue Width (In.)
0.55
Copper Code Conductor Size (AWG)
4
Inside Diameter (mm)
0.11
Barrel Length (mm)
20.57
Tongue Thickness (mm)
2.28
Stud Hole Size (In.)
44930
Wire Strip Length (In.)
45115
Stud Hole Size (mm)
6.35
Tongue Width (mm)
13.97
Overall Length (In.)
1.74
Tongue Thickness (In.)
0.09
Barrel Length (In.)
0.81
Inside Diameter (In.)
0.28
Overall Length (mm)
44.19
Outer Diameter (In.)
0.38
Wire Strip Length (mm)
22.22
For Wire Size
4 to 2 AWG
Barrel Size
Standard
Tongue Width
0.55 in

Details

Connector Type
Standard Barrel
Material
Copper
Color Code
Gray
Item
Lug Compression Connector
Standards
UL/CSA certified
Die Code
8
Features
Corrosion Resistant, 90° Angled Connector
Connection Type
1 x Terminal
Connection Material
Tin
Finish/Coating
Tin-Plated
Stud Hole Spacing (mm)
15
Stud Hole Spacing (In.)
0.63
Lug Type
Standard
Base Material
Copper
T & B Die Index Number
8
Burndy Die Index Number
8
Tongue Type
Standard
Maximum Voltage (kV)
35
CSA Temperature Rating (°C)
90
UL Temperature Rating (°C)
90
Product Type
Copper Compression Lugs
Panduit Die Index Number
P29
Tongue Angle
90 Degrees Angled
Product Material
Copper
Connector Details
1 x Terminal
Connector Plating
Tin
Product Name
Terminal Connector
Product Class
Lugs, Splices, Split Bolts & Accessories
For Conductor Material
Copper

Description

Lug Compression Connector,4-3 AWG
