Shop PANDUIT

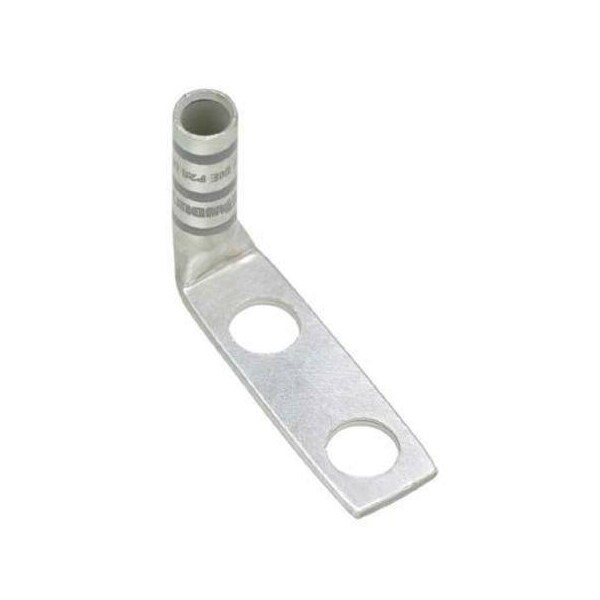

Lug Compression Connector, 6 AWG Max, Long Barrel, Copper, Blue

  • Mfr # LCC6-10AF-L
  • Zoro # G0776163
product price:
$
11.15
/ea

Key Features

For Wire Size
6 AWG
For Conductor Material
Copper
Material
Copper
Barrel Size
Long
Tongue Width
0.46 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
LCC6-10AF-L
Zoro #
G0776163
UPC #
7498389989
Country of Origin
Mexico
Item
Lug Compression Connector
For Conductor Material
Copper
Material
Copper
Die Code
7
Color Code
Blue
Connector Type
Long Barrel
Connection Material
Tin
Connection Type
1 x Terminal
Features
Corrosion Resistant, 90° Angled Connector
Tongue Type
Standard
UL Temperature Rating (°C)
90
Stud Hole Spacing (mm)
16
Maximum Voltage (kV)
35
Burndy Die Index Number
7
Base Material
Copper
Stud Hole Spacing (In.)
0.63
Finish/Coating
Tin-Plated
Product Type
Copper Compression Connectors - Lugs
Panduit Die Index Number
P24
Connector Details
1 x Terminal
Product Name
Terminal Connector
Product Material
Copper
Connector Plating
Tin
Product Class
Wire Termination

Dimensions

For Wire Size
6 AWG
Barrel Size
Long
Tongue Width
0.46 in
Length
1.57 in
Width
0.46 in
Cable Size
6 AWG
Overall Length
1.57 in
Wire Strip Length (In.)
1.13
Tongue Thickness (mm)
2
Overall Length (In.)
1.57
Wire Strip Length (mm)
28.6
Stud Hole Size (In.)
0.19
Barrel Length (In.)
1.07
Copper Code Conductor Size (AWG)
6
Tongue Width (mm)
11.7
Stud Hole Size (mm)
4.8
Tongue Width (In.)
0.46
Tongue Thickness (In.)
0.08
Barrel Length (mm)
27.2
Overall Length (mm)
39.9

Description

Lug Compression Connector,No.6 AWG

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
