Shop PANDUIT

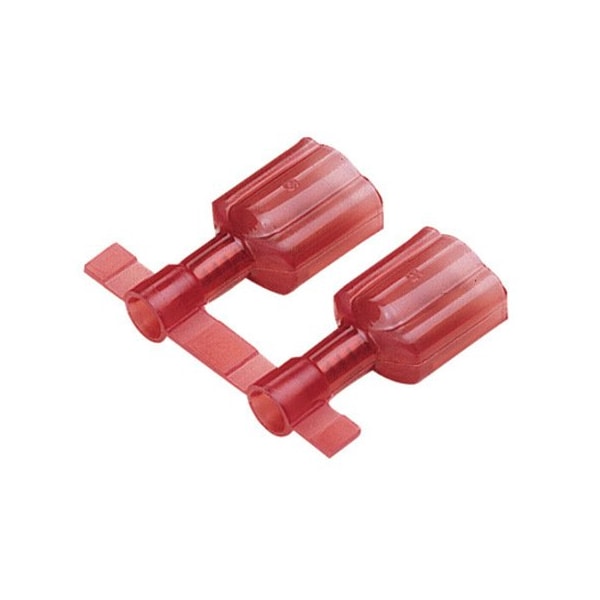

Male Disconnect, Nylon, 22-18AWG, PK2000

  • Mfr # DNF18-250FIM-2K

  • Zoro # G0765672

product price:  $851.99
/pk 2000, $0.43/ea
Free Shipping & Returns

Key Features

For Use With
Crimp press with CA9 (CD9-4B) or CA-800EZ (CD-800-4) applicator
Color Code
Red
Insulation Type
Fully Insulated
Overall Length
0.9 in
Features
Molded, Flame Retardant
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
DNF18-250FIM-2K
Zoro #
G0765672
UPC #
7498382631
Country of Origin
Mexico

Dimensions

Overall Length
0.9 in
Width
0.4"
Height
0.29 in
Overall Height (mm)
7.49
Overall Length (mm)
22.86
Maximum Metric Conductor Size (mm²)
1
Maximum Wire Insulation Diameter (mm)
3.38
Overall Height (In.)
0.295
Tab Size (mm)
6.3 x 0.8
Wire Strip Length (mm)
7.1
Minimum Wire Size (AWG)
#22
Minimum Metric Conductor Size (mm²)
0.5
Overall Width (In.)
0.42
Maximum Wire Size (AWG)
#18
Wire Strip Length (In.)
11933
Overall Width (mm)
10.66
Overall Length (In.)
0.9
Maximum Copper Conductor Size (AWG)
#18
Maximum Wire Insulation Diameter (In.)
0.133
Tab Size (In.)
0.250 x 0.032

Details

Item
Male Disconnect,Nylon,22-18AWG,PK2000
For Use With
Crimp press with CA9 (CD9-4B) or CA-800EZ (CD-800-4) applicator
Color Code
Red
Insulation Type
Fully Insulated
Features
Molded, Flame Retardant
Flammability Rating
UL94-HB
Standards Met
UL 310, CSA 22.2 No.153
Insulation Material
Nylon
Maximum Operating Temperature (°F)
221
Maximum Operating Temperature (°C)
105
Finish/Coating
Nickel-Plated
Barrel Type
Funnel
Maximum Voltage (kV)
0.6
Tongue Angle
Straight
Maximum Voltage (V)
600
Disconnect Type
Male Tab Disconnect
Product Type
Disconnect
Base Material
Brass
Product Material
Brass
Contact Plating
Nickel
Product Name
Terminal Connector
Connector Details
1 x Quick Disconnect
Product Color
Red
Product Class
Disconnects
Max Operating Temperature
105 degrees celsius

Description

Male Disconnect,Nylon,22-18AWG,PK2000, Package Quantity 2000

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
