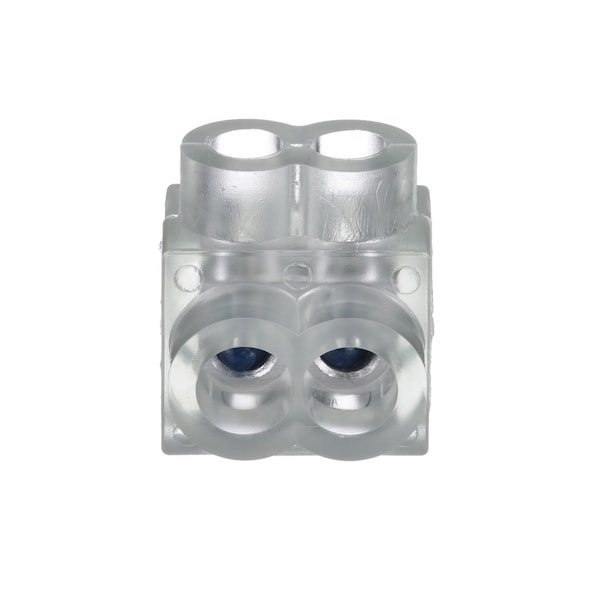

Panduit Mechanical Connector, 4-14 AWG PCSB4-2-12Y - main

Mechanical Connector, 4-14 AWG

  • Mfr # PCSB4-2-12Y

  • Zoro # G0781748

product price:  $21.69
/ea

Key Features

Connector Type
Double-Sided
For Wire Size
14-4 AWG
Number of Ports
2
For Conductor Material
Aluminum or Copper
Body Material
Aluminum
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
PCSB4-2-12Y
Zoro #
G0781748
UPC #
7498359754
Country of Origin
United States

Dimensions

For Wire Size
14-4 AWG
Width
1.5 in
Overall Length (In.)
1.23
Overall Height (In.)
1.25
Overall Width (mm)
38.1
Wire Strip Length (mm)
14.2
Maximum Aluminum Conductor Size (AWG)
4
Overall Width (In.)
1.5
Minimum Copper Conductor Size (AWG STR)
14
Maximum Copper Conductor Size (AWG SOL)
10
Overall Length (mm)
31.2
Minimum Copper Conductor Size (AWG SOL)
14
Maximum Copper Conductor Size (AWG STR)
4
Overall Height (mm)
31.7
Wire Strip Length (In.)
0.56
Minimum Aluminum Conductor Size (AWG)
14
Hex Size (mm)
3.17
Overall Length
1.23 in
Height
1.2 in

Details

Item
Mechanical Connector,4-14 AWG
Connector Type
Double-Sided
Number of Ports
2
For Conductor Material
Aluminum or Copper
Body Material
Aluminum
Insulation Material
Clear PVC
Head Style
Hex
Color
Clear
Maximum Operating Temperature
90°C
Application
Aluminum or Copper Code Conductors
Note
PCSB4-2-12Y replaces PCSB4-2-12
Standards Met
UL listed and CSA certified for use up to 600V & Temperature Rated to 90°C
Product Type
Multi-Tap Mechanical Connectors, Double Sided
UL Temperature Rating (°C)
90
Finish/Coating
Tin-Plated
Maximum Voltage (V)
600
Base Material
Aluminum
Product Class
Mechanical Lugs

Description

Mechanical Connector,4-14 AWG

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
