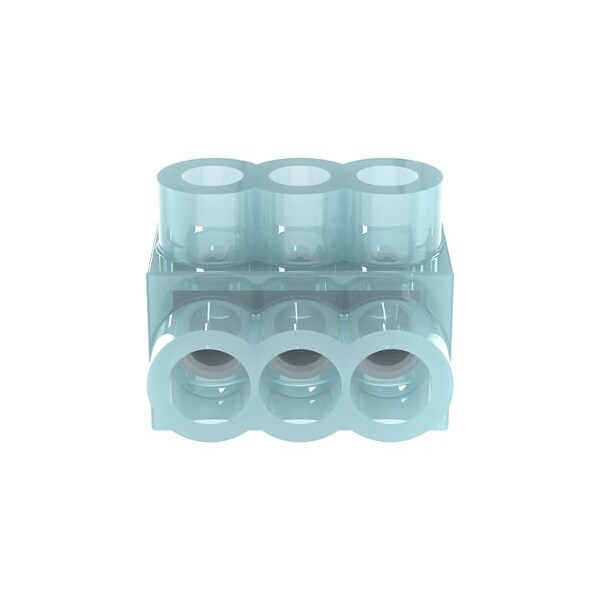

Panduit Mechanical Connector, 4-14 AWG PCSB4-3-12Y - main

Mechanical Connector, 4-14 AWG

  • Mfr # PCSB4-3-12Y

  • Zoro # G0781757

product price:  $26.89
/ea

Key Features

Connector Type
Double-Sided
For Wire Size
14-4 AWG
Number of Ports
3
For Conductor Material
Aluminum or Copper
Body Material
Aluminum
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
PCSB4-3-12Y
Zoro #
G0781757
UPC #
7498359756
Country of Origin
United States

Dimensions

For Wire Size
14-4 AWG
Length
1.8"
Width
1.5"
Height
1.2"
Overall Length
1.76 in
Minimum Copper Conductor Size (AWG SOL)
14
Minimum Aluminum Conductor Size (AWG)
14
Hex Size (mm)
3.18
Overall Length (In.)
1.76
Maximum Copper Conductor Size (AWG STR)
4
Overall Height (mm)
31.8
Maximum Aluminum Conductor Size (AWG)
4
Maximum Copper Conductor Size (AWG SOL)
10
Overall Length (mm)
44.7
Overall Height (In.)
1.2
Overall Width (In.)
1.5
Minimum Copper Conductor Size (AWG STR)
4
Overall Width (mm)
38.1

Details

Item
Mechanical Connector,4-14 AWG
Connector Type
Double-Sided
Number of Ports
3
For Conductor Material
Aluminum or Copper
Body Material
Aluminum
Insulation Material
Clear PVC
Head Style
Hex
Color
Clear
Maximum Operating Temperature
90°C
Standards
UL listed and CSA certified
Application
Aluminum or Copper Code Conductors
Features
Double Sided
Note
PCSB4-3-12Y replaces PCSB4-3-12
Standards Met
UL Listed and CSA Certified for use up to 600 V
Product Type
Multi-Tap Mechanical Connectors, Double Sided
UL Temperature Rating (°C)
90
Base Material
Aluminum
Maximum Voltage (V)
600
Product Color
Clear
Product Material
Polyvinyl Chloride (PVC)
Product Name
Pan-Lug Terminal Connector
Connector Details
Multi-tap Terminal
Product Line
Pan-Lug
Product Class
Mechanical Lugs

Description

Mechanical Connector,4-14 AWG

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
