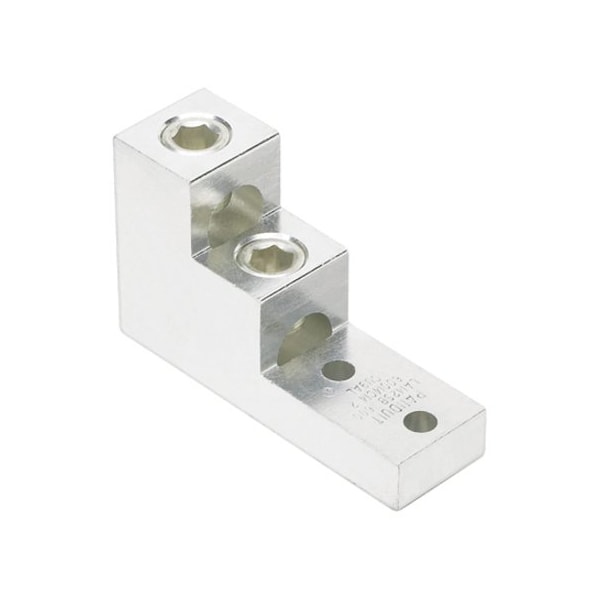

Mechanical Lug, 750 kcmil Max, 2 Hole, 3/8 in Stud, Aluminum
- Mfr # LAM2SB750-38-1Y
- Zoro # G0425133
product price:Â
$
89.99
/ea
Key Features
For Conductor Material
Aluminum, Copper
For Minimum Wire Size
3/0 AWG
For Maximum Wire Size
750 kcmil
Number of Holes
2
For Stud Size
3/8 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- LAM2SB750-38-1Y
- Zoro #
- G0425133
- UPC #
- 7498359286
- Country of Origin
- United States
- Item
- Mechanical Lug
- For Conductor Material
- Aluminum, Copper
- Number of Holes
- 2
- Body Material
- Aluminum
- Contact Finish
- Tin
- Maximum Voltage
- 600V
- Maximum Operating Temperature
- 90 Degrees C
- Standards
- UL Listed
- Application
- Stranded Aluminum or Copper Code Conductor
- Features
- Halogen Free
- Product Type
- Mechanical Connectors - Lug
- Tongue Type
- Straight Tongue
- Stud Hole Spacing (mm)
- 35.1
- Stud Hole Spacing (In.)
- 1.38
- UL Temperature Rating (°C)
- 90
- Finish/Coating
- Tin-Plated
- Product Material
- Aluminum, Copper
- Connector Plating
- Tin
- Product Name
- Terminal Connector
- Product Class
- Wire Termination
- Hole Spacing
- 1.38 in
Dimensions
- For Minimum Wire Size
- 3/0 AWG
- For Maximum Wire Size
- 750 kcmil
- For Stud Size
- 3/8 in
- Tongue Width
- 0.63 in
- Height
- 3 in
- Overall Length
- 4.91 in
- Overall Height (In.)
- 3
- Overall Length (In.)
- 4.91
- Overall Height (mm)
- 76.2
- Overall Length (mm)
- 124.7
- Stud Hole Size (In.)
- 44993
- Tongue Thickness (In.)
- 0.75
- Tongue Length
- 2.34 in
