Panduit

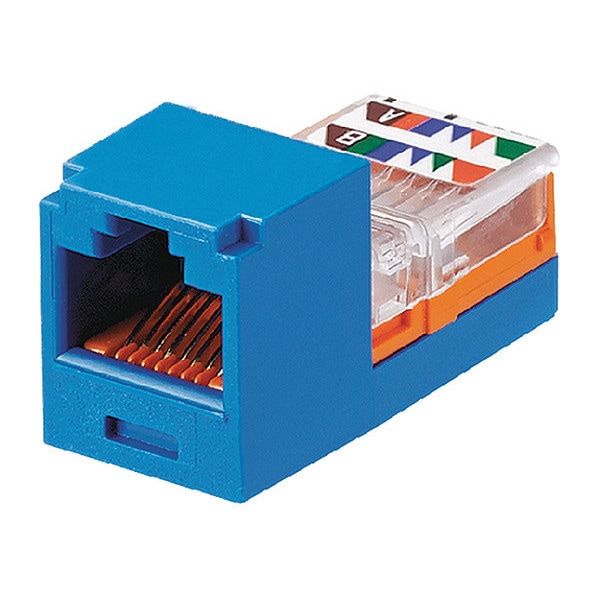

Module, Cat5e, Utp, 8p8e, Universal, Bu

product price: $246.99
/pk 25, $9.88/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Color Blue
  • Connector Type Jack Module - Standard
  • Note CJ588BUY replaces CJ588BU
  • Termination Style Leadframe
  • Standards Met Exceeds Channel and Component Requirements of ANSI/TIA-568-C.2 Category 5e and ISO 11801 Class D Standards at Swept Frequencies 1 to 100 MHz. Meets all Applicable ANSI/TIA-968-A Requirements, Meets Requirements of IEEE 802.3af and IEEE 802.3at for PoE Applications, Meets IEC 60603-7, UL 1863 Approved, RoHS Compliant
See all product information

Product Information

Dimensions

Overall Width (In.) 0.62
Overall Length (In.) 1.37
Overall Depth (In.) 1.37
Overall Height (In.) 0.72

Details

Color Blue
Connector Type Jack Module - Standard
Note CJ588BUY replaces CJ588BU
Termination Style Leadframe
Standards Met Exceeds Channel and Component Requirements of ANSI/TIA-568-C.2 Category 5e and ISO 11801 Class D Standards at Swept Frequencies 1 to 100 MHz. Meets all Applicable ANSI/TIA-968-A Requirements, Meets Requirements of IEEE 802.3af and IEEE 802.3at for PoE Applications, Meets IEC 60603-7, UL 1863 Approved, RoHS Compliant
Maximum Operating Temperature (°C) 65
Wiring Scheme T568A/T568B
Performance Level Category 5e
Shield Type Unshielded (UTP)
Product Type Jack Module
Minimum Storage Temperature (°C) -40
Module Type Mini-Com®
Maximum Storage Temperature (°C) 70
Body Material ABS
Contact Material Plated Phosphor Bronze
Minimum Operating Temperature (°C) -10
Resistance Properties Heat-Resistant

Description

Module, Cat5e, Utp, 8p8e, Universal, Bu
