  11. MS Strapping, 316 SS, .63" (15.9mm) Wd,

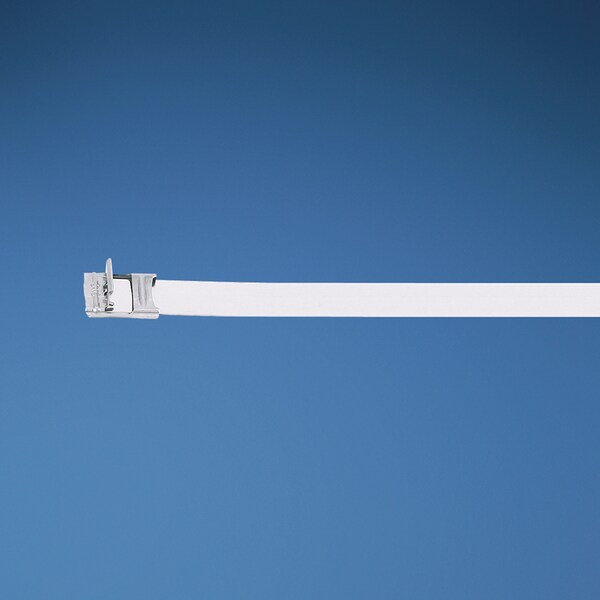

Panduit MS Strapping, 316 SS, .63" (15.9mm) Wd, MS4W63T15-L6 - main

MS Strapping, 316 SS, .63" (15.9mm) Wd,

  • Mfr # MS4W63T15-L6

  • Zoro # G2992817

product price: $144.99
/pk 50, $2.90/ea
Free Shipping & Returns

Key Features

Color
Natural
Material
316 Stainless Steel
Length
17.99"
Width
0.63"
Thickness
15 mil
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MS4W63T15-L6
Zoro #
G2992817
UPC #
7498344689
Country of Origin
United States

Dimensions

Length
17.99"
Width
0.63"
Thickness
15 mil
Overall Length
18 in
Overall Length (In.)
18
Overall Thickness (In.)
0.02
Overall Length (mm)
457
Maximum Bundle Diameter (In.)
4
Overall Width (mm)
15.9
Overall Thickness (mm)
0.4
Overall Width (In.)
0.63
Minimum Bundle Width (mm)
25.4
Maximum Bundle Diameter (mm)
102
Minimum Bundle Width (In.)
1

Details

Color
Natural
Material
316 Stainless Steel
For Use With
BT2HT,BT2MS75
Application
Corrosive Environment
Minimum Loop Tensile Strength (N)
3725
Strap Breaking Strength (lb)
839
Maximum Operating Temperature (°F)
1000
Resistance Properties
UV Resistant
Environment
Indoor and Outdoor
Minimum Loop Tensile Strength (lb)
837
Maximum Operating Temperature (°C)
538
Strap Breaking Strength (N)
3725
Minimum Operating Temperature (°C)
-60
Maximum Installation Temperature (°C)
538
Maximum Installation Temperature (°F)
1000
Minimum Installation Temperature (°F)
-112
Minimum Installation Temperature (°C)
-80
Product Type
Strapping
Minimum Operating Temperature (°F)
-76
Product Line
Pan-Steel
Product Name
Pan-Steel MS Series Cable Strap
Product Series
MS
Minimum Loop Tensile Strength
800 lb
Cable Manager Type
Cable Strap
Certifications & Standards
RoHS
Product Material
Stainless Steel
Additional Information
Max. Bundle Diameter: 4.0", Min. Bundle Diameter: 1.0", Tool: BT1HT, BT2MS75, Buckle design provides a low finished profile, After tensioning cut end is locked inside buckle, no sharp edges, Buckle locked in place will not slip down strap, Available in 316 material for the most corrosive environments
Product Class
Wire Routing, Management & Protection
Min Operating Temperature
-60 degrees celsius
Max Operating Temperature
538 degrees celsius

Description

MS Strapping, 316 SS, .63" (15.9mm) Wd, 18.0" (457mm), .015" (.38mm) thk
