  6. Multi-Tap Connector, Single-Sided, Clear Insulation, 2, PCSB600-2S-4Y

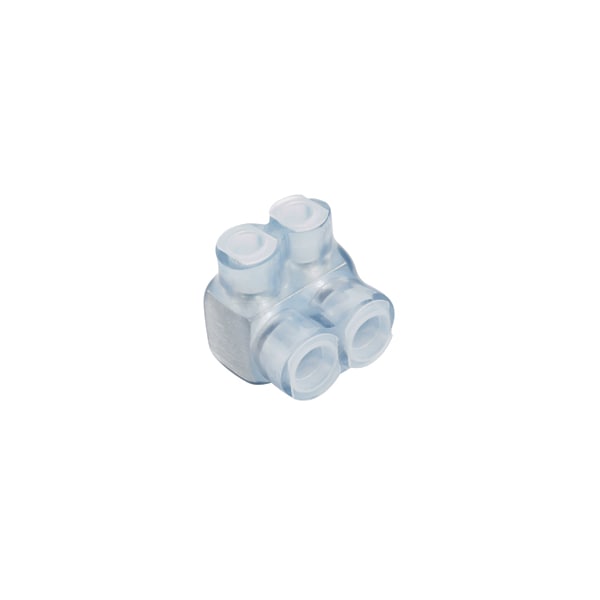

Panduit Multi-Tap Connector, Single-Sided, Clear Insulation, 2, PCSB600-2S-4Y PCSB600-2S-4Y - main

Multi-Tap Connector, Single-Sided, Clear Insulation, 2, PCSB600-2S-4Y

  • Mfr # PCSB600-2S-4Y

  • Zoro # G2866799

product price:  $64.89
/ea

Key Features

For Wire Size
6 AWG-600 kcmil
Number of Ports
2
For Conductor Material
Copper, Aluminum
Body Material
Aluminum
Insulation Material
Clear PVC
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
PCSB600-2S-4Y
Zoro #
G2866799
UPC #
7498359988
Country of Origin
United States

Dimensions

For Wire Size
6 AWG-600 kcmil
Length
2.7"
Width
2.3"
Overall Length
2.72 in
Height
2.8"
Overall Height (In.)
2.8
Minimum Aluminum Conductor Size (AWG)
6
Overall Length (In.)
2.72
Overall Width (In.)
2.25
Hex Size (mm)
9.53
Overall Width (mm)
57.2
Maximum Aluminum Conductor Size (kcmil)
600
Minimum Copper Conductor Size (AWG STR)
6
Maximum Copper Conductor Size (kcmil)
600
Overall Height (mm)
69.9
Overall Length (mm)
69.1

Details

Number of Ports
2
For Conductor Material
Copper, Aluminum
Body Material
Aluminum
Insulation Material
Clear PVC
Head Style
Hex
Color
Clear
Standards
UL Listed and CSA Certified
Features
Single Sided
Application
Aluminum or Copper Code Conductors
Maximum Voltage (V)
600
Product Type
Multi-Tap Mechanical Connectors, Single Sided
Note
PCSB600-2S-4Y replaces PCSB600-2S-4
UL Temperature Rating (°C)
90
Base Material
Aluminum
Standards Met
UL Listed and CSA Certified for use up to 600 V
Product Name
Pan-Lug Terminal Connector
Product Material
Polyvinyl Chloride (PVC)
Product Line
Pan-Lug
Product Color
Clear
Connector Details
Multi-tap Terminal
Product Class
Mechanical Lugs

Description

Multi-Tap Connector, Single-Sided, Clear Insulation, 2 Ports, 600 kcmil - #6 STR
