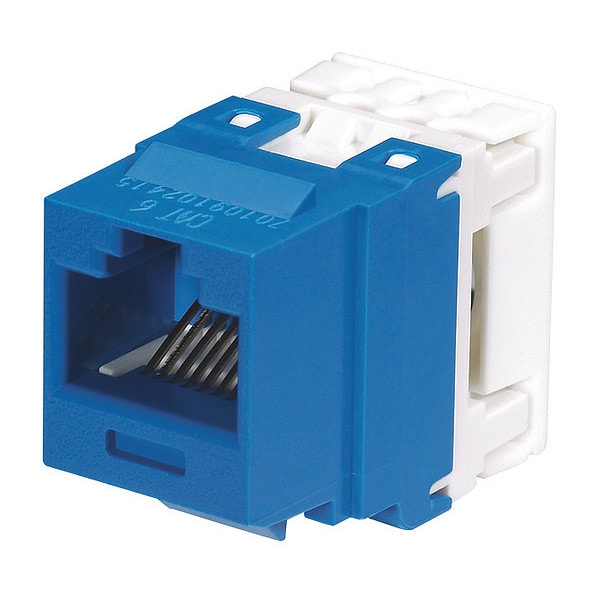

Panduit Nk, Cat6, Punchdownjackmodule, Blue NK688MBU - main

Nk, Cat6, Punchdownjackmodule, Blue

  • Mfr # NK688MBU

  • Zoro # G0417479

product price: $7.59
/ea

Key Features

Color
Blue
Width
0.65 in
Connector Type
Jack Module - Standard
Body Material
Polycarbonate
Maximum Operating Temperature (°C)
75
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
NK688MBU
Zoro #
G0417479
UPC #
7498357469
Country of Origin
United States

Dimensions

Width
0.65 in
Overall Width (In.)
0.65
Overall Depth (In.)
1.16
Overall Height (In.)
0.9
Overall Length (In.)
1.16
Overall Length
1.16 in

Details

Item
Nk,Cat6,Punchdownjackmodule,Blue
Color
Blue
Connector Type
Jack Module - Standard
Body Material
Polycarbonate
Maximum Operating Temperature (°C)
75
Contact Material
Plated Phosphor Bronze
Shield Type
Unshielded (UTP)
Termination Style
Punchdown
Module Type
Keystone
Minimum Operating Temperature (°C)
-10
Minimum Storage Temperature (°C)
-40
Product Type
Network Connector
Note
Punchdown style termination
Maximum Storage Temperature (°C)
75
Performance Level
Category 6
Standards Met
Exceeds ANSI/TIA-568-C.2 Category 6 and ISO 11801 Class E Channel and Component Requirements at Swept Frequencies up to 250 MHz. Meets with ANSI/TIA-1096-A, Meets IEC 60603-7 and IEC 60512-99-001, Rated for 2500 Cycles with IEEE 802.3af/802.3at and Proposed 802.3bt Type 3 and Type 4, UL 1863 and CAN/CSA-C22.2 (UL File E129886), and RoHS Compliant
Wiring Scheme
T568A/T568B
Connector Details
1 x RJ-45 Network
Product Name
NetKey NK688MBU Cat.6 Connector Adapter
Product Line
NetKey
110 Block
Yes
Product Color
Blue
Product Class
Jack Modules
Min Operating Temperature
-10 degrees celsius
Max Operating Temperature
65 degrees celsius

Description

Category 6, 8-position, 8-wire, keystone punchdown jack module. Blue.

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
