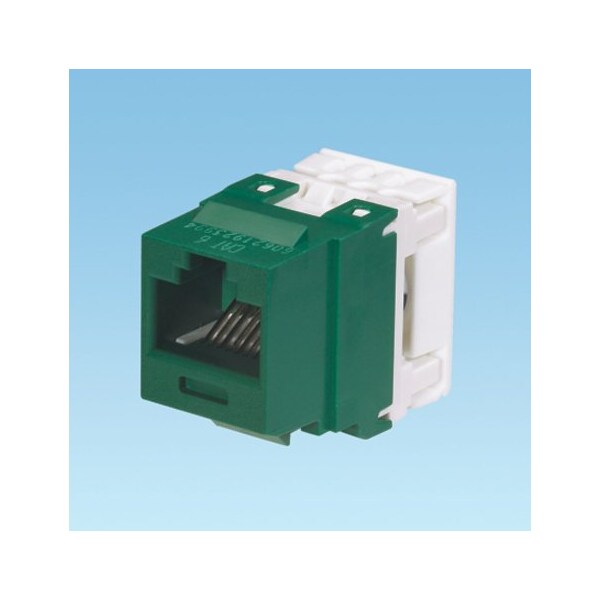

Panduit Nk, Cat6, Punchdownjackmodule, Gr NK688MGR - main

Nk, Cat6, Punchdownjackmodule, Gr

  • Mfr # NK688MGR

  • Zoro # G0417345

product price: $8.39
/ea

Key Features

Color
Green
Height
0.9 in
Depth
1.16 in
Width
0.65 in
Connector Type
Jack Module - Standard
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
NK688MGR
Zoro #
G0417345
UPC #
7498357472
Country of Origin
United States

Dimensions

Height
0.9 in
Depth
1.16 in
Width
0.65 in
Overall Length
1.16 in
Overall Length (In.)
1.16
Overall Height (In.)
0.9
Overall Depth (In.)
1.16
Overall Width (In.)
0.65

Details

Item
Nk,Cat6,Punchdownjackmodule,Gr
Color
Green
Connector Type
Jack Module - Standard
Features
PoE+
Minimum Storage Temperature (°C)
-40
Shield Type
Unshielded (UTP)
Standards Met
Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
Module Type
Keystone
Wiring Scheme
T568A/T568B
Body Material
Polycarbonate
Contact Material
Plated Phosphor Bronze
Minimum Operating Temperature (°C)
-10
Maximum Operating Temperature (°C)
75
Termination Style
Punchdown
Performance Level
Category 6
Note
Punchdown style termination
Product Type
Network Connector
Maximum Storage Temperature (°C)
75
Product Name
Network Connector
Product Color
Green
Material Details
Polycarbonate - Wire Cap
Connector Details
1 x RJ-45 Network Female
Product Material
Polycarbonate, Acrylonitrile Butadiene Styrene (ABS)
Product Class
Jack Modules
Min Operating Temperature
-10 degrees celsius

Description

Nk,Cat6,Punchdownjackmodule,Gr
