One-Hole Compression Lug, 0.31 in Stud, Standard Barrel, Copper, None, 100 PK
Mfr # A2-56RH-C
Zoro # G604858530
product price: $355.99
/pk 100, $3.56/ea
Free Shipping & Returns
Key Features
Material
Copper
Color Code
None
Tool Type
Copper Compression Lug
Outside Dia.
0.42
Overall Length
1.78 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
A2-56RH-C
Zoro #
G604858530
UPC #
61305679319
Country of Origin
Mexico
Dimensions
Outside Dia.
0.42
Overall Length
1.78 in
Wire Strip Length (mm)
19.1
Barrel Length (mm)
18.8
Stud Hole Size (In.)
0.31
Tongue Thickness (In.)
0.1
Wire Strip Length (In.)
0.75
Inside Diameter (mm)
7.9
Outer Diameter (In.)
0.42
Inside Diameter (In.)
0.31
Tongue Width (mm)
16.8
Overall Length (In.)
1.78
Tongue Thickness (mm)
2.5
Overall Length (mm)
45.2
Class K Copper Flex Conductor Size (AWG)
2
Barrel Length (In.)
0.74
Stud Hole Size (mm)
7.9
Outer Diameter (mm)
10.7
Tongue Width (In.)
0.66
Barrel Size
Standard
Tongue Width
0.66 in
For Stud Size
0.31 in
Description

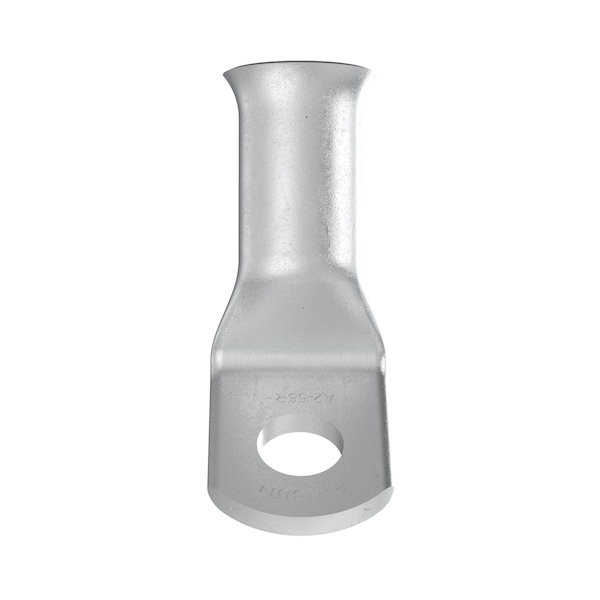

The A2-56RH-C Copper Compression Battery Cable Lug, 2 AWG, 5/16" Stud with a 45 degree bend are tin plated to meet ASTM Class C specification for corrosion resistance. Manufactured with a standard barrel without an inspection window preventing contaminents from entering. Flared barrel entry for ease of inserting flex conductors. High pullout strength for heavy duty applications and military pullout strength requirements when using Panduit recommended tooling.
Restrictions
WARNING:
Cancer and Reproductive Harm
For more information go to
www.P65Warnings.ca.gov
