  6. One-Hole Compression Lug, 0.31 in Stud, Standard Barrel, Copper, None, 100 PK

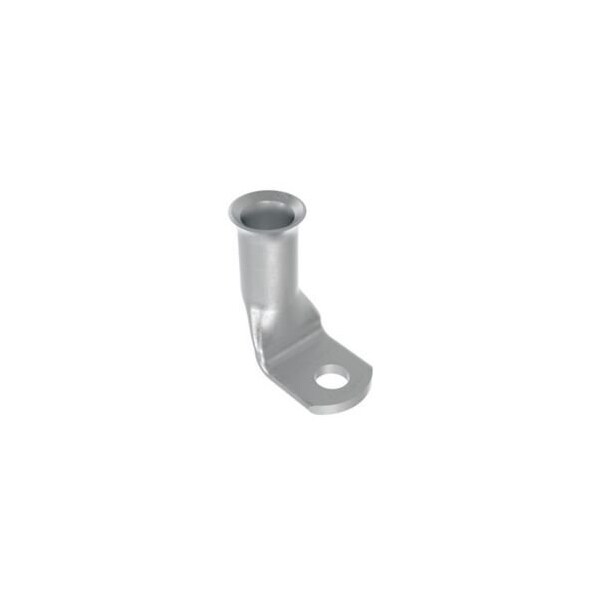

Panduit One-Hole Compression Lug, 0.31 in Stud, Standard Barrel, Copper, None, 100 PK A4/0-56RF-C - main

One-Hole Compression Lug, 0.31 in Stud, Standard Barrel, Copper, None, 100 PK

  • Mfr # A4/0-56RF-C

  • Zoro # G804859092

product price:  $890.99
/pk 100, $8.91/ea
Free Shipping & Returns

Key Features

For Conductor Material
Copper
Material
Copper
For Stud Size
0.31 in
Color Code
None
Barrel Size
Standard
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
A4/0-56RF-C
Zoro #
G804859092
UPC #
61305679314
Country of Origin
Mexico

Dimensions

For Stud Size
0.31 in
Barrel Size
Standard
Overall Length
1.65 in
Outside Dia.
0.69
Barrel Length
0.91
Tongue Thickness (mm)
3
Inside Diameter (In.)
0.56
Class K Copper Flex Conductor Size (AWG)
36617
Tongue Width (mm)
25.9
Overall Length (mm)
41.9
Tongue Thickness (In.)
0.12
Wire Strip Length (In.)
0.94
Inside Diameter (mm)
14.2
Overall Length (In.)
1.65
Barrel Length (mm)
23.1
Tongue Width (In.)
1.02
Outer Diameter (mm)
17.5
Outer Diameter (In.)
0.69
Barrel Length (In.)
0.91
Stud Hole Size (mm)
7.9
Stud Hole Size (In.)
0.31
Wire Strip Length (mm)
23.8
Tongue Width
1.02 in

Details

For Conductor Material
Copper
Material
Copper
Color Code
None
Standards
UL Listed for use in US and Canada to UL 486A-486B for power applications, meets US Military Wire Pull Out Specs
Item
One-Hole Compression Lug
Hole Center to Center
0.31 in
Tool Type
Copper Compression Lug
Product Type
Copper Compression Lug
Lug Type
1 Stud Hole Lug
Finish/Coating
Tin-Plating Meets ASTM B545-97, Class C 320µ-in (8 µm)
UL Temperature Rating (°C)
90
Base Material
Copper
Tongue Angle
90 Degrees Angled
Maximum Voltage (kV)
35
Tongue Type
Round

Description

The A4/0-56RF-C Copper Compression Battery Cable Lug, 4/0 AWG, 5/16" Stud with a 90 degree bend are tin plated to meet ASTM Class C specification for corrosion resistance. Manufactured with a standard barrel without an inspection window preventing contaminents from entering. Flared barrel entry for ease of inserting flex conductors. High pullout strength for heavy duty applications and military pullout strength requirements when using Panduit recommended tooling.
