  6. One-Hole Compression Lug, 0.38 in Stud, Standard Barrel, Copper, None, 100 PK

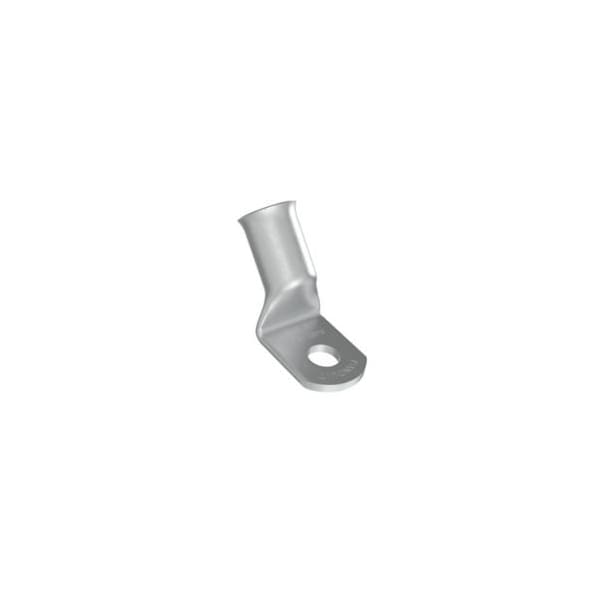

Panduit One-Hole Compression Lug, 0.38 in Stud, Standard Barrel, Copper, None, 100 PK A4/0-38RH-C - main

One-Hole Compression Lug, 0.38 in Stud, Standard Barrel, Copper, None, 100 PK

  • Mfr # A4/0-38RH-C

  • Zoro # G904859053

product price:  $1,074.99
/pk 100, $10.75/ea
Free Shipping & Returns

Key Features

For Stud Size
0.38 in
Material
Copper
Color Code
None
Standards
UL Listed for use in US and Canada to UL 486A-486B for power applications, meets US Military Wire Pull Out Specs
Barrel Length
0.91
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
A4/0-38RH-C
Zoro #
G904859053
UPC #
61305679324
Country of Origin
Mexico

Dimensions

For Stud Size
0.38 in
Barrel Length
0.91
Overall Length
2.39 in
Outside Dia.
0.69
Class K Copper Flex Conductor Size (AWG)
36617
Overall Length (mm)
60.7
Inside Diameter (mm)
14.2
Barrel Length (mm)
23.1
Overall Length (In.)
2.39
Tongue Width (In.)
1.02
Barrel Length (In.)
0.91
Outer Diameter (In.)
0.69
Wire Strip Length (In.)
0.94
Wire Strip Length (mm)
23.8
Inside Diameter (In.)
0.56
Tongue Thickness (mm)
3
Stud Hole Size (mm)
9.5
Stud Hole Size (In.)
0.38
Outer Diameter (mm)
17.5
Tongue Thickness (In.)
0.12
Tongue Width (mm)
25.9
Barrel Size
Standard
Tongue Width
1.02 in

Details

Item
One-Hole Compression Lug
Material
Copper
Color Code
None
Standards
UL Listed for use in US and Canada to UL 486A-486B for power applications, meets US Military Wire Pull Out Specs
Hole Center to Center
0.38 in
Tool Type
Copper Compression Lug
UL Temperature Rating (°C)
90
Tongue Type
Round
Base Material
Copper
Tongue Angle
45 Degrees Angled
Lug Type
1 Stud Hole Lug
Maximum Voltage (kV)
35
Finish/Coating
Tin-Plating Meets ASTM B545-97, Class C 320µ-in (8 µm)
Product Type
Copper Compression Lug
For Conductor Material
Copper

Description

The A4/0-38RH-C Copper Compression Battery Cable Lug, 4/0 AWG, 3/8" Stud with a 45 degree bend are tin plated to meet ASTM Class C specification for corrosion resistance. Manufactured with a standard barrel without an inspection window preventing contaminents from entering. Flared barrel entry for ease of inserting flex conductors. High pullout strength for heavy duty applications and military pullout strength requirements when using Panduit recommended tooling.

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
