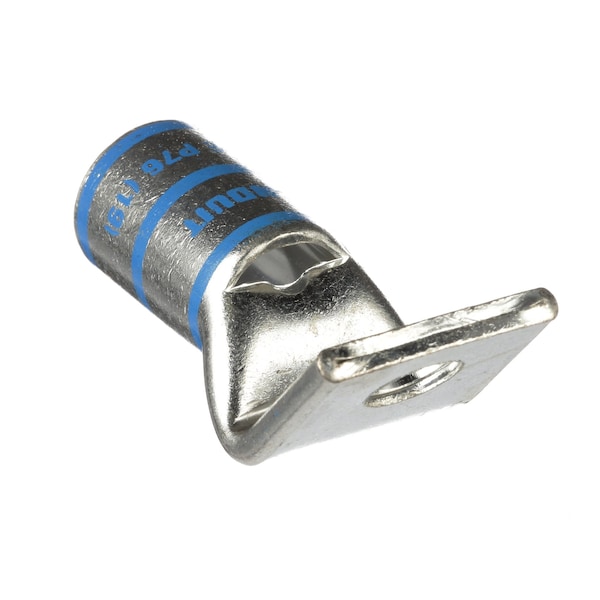

One-Hole Compression Lug, 1 to 2 in Stud, Standard Barrel, Copper, Blue
- Mfr # LCA400-12H-6
- Zoro # G2754808
product price:
$
28.95
/ea
Key Features
For Conductor Material
Copper
For Stud Size
1 to 2 in
Material
Copper
Barrel Size
Standard
Tongue Width
1.39 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- LCA400-12H-6
- Zoro #
- G2754808
- UPC #
- 7498386976
- Country of Origin
- Mexico
- Item
- One-Hole Compression Lug
- For Conductor Material
- Copper
- Material
- Copper
- Tongue Angle
- 45 Degrees Angled
- Die Code
- 19
- Color Code
- Blue
- Standards
- C22.2 No. 65-13, 486A-486B File #E52164
- Features
- Corrosion Resistant, 45° Angled Connector
- Base Material
- Copper
- Maximum Voltage (kV)
- 35
- Product Type
- Copper Compression Connectors - Lugs
- Burndy Die Index Number
- 19
- Finish/Coating
- Tin-Plated
- Tongue Type
- Standard
- UL Temperature Rating (°C)
- 90
- Panduit Die Index Number
- P76
- Product Material
- Copper
- Connector Details
- 1 x Terminal
- Product Name
- Terminal Connector
- Connector Plating
- Tin
- Product Class
- Wire Termination
Dimensions
- For Stud Size
- 1 to 2 in
- Barrel Size
- Standard
- Tongue Width
- 1.39 in
- Length
- 2.8"
- Overall Length
- 2.85 in
- Overall Length (mm)
- 72.4
- Overall Length (In.)
- 2.85
- Tongue Width (In.)
- 1.39
- Wire Strip Length (In.)
- 1.56
- Tongue Width (mm)
- 35.3
- Stud Hole Size (mm)
- 12.7
- Tongue Thickness (In.)
- 0.18
- Stud Hole Size (In.)
- 1 to 2
- Tongue Thickness (mm)
- 4.6
- Copper Code Conductor Size (kcmil)
- 400
- Wire Strip Length (mm)
- 39.7
- Barrel Length (mm)
- 38.1
- Barrel Length (In.)
- 1.5
Description
Copper Compression Lug, 1 Hole, 400 kcmil, 1/2 (12.7mm) Stud, 45° Bent
