One-Hole Compression Lug, 1/0 AWG Max, Standard Barrel, Copper, Pink
- Mfr # LCAN1/0-14-X
- Zoro # G0412104
product price:Â
$
9.69
/ea
Key Features
For Wire Size
1/0 AWG
For Conductor Material
Copper
Material
Copper
Barrel Size
Standard
Tongue Width
0.52 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- LCAN1/0-14-X
- Zoro #
- G0412104
- UPC #
- 7498360333
- Country of Origin
- Mexico
- Item
- One-Hole Compression Lug
- For Conductor Material
- Copper
- Material
- Copper
- Tongue Angle
- Straight
- Die Code
- 12
- Color Code
- Pink
- Standards
- C22.2 No. 65-13, 486A-486B File #E52164
- Connector Type
- Standard Barrel
- Connection Type
- 1 x Terminal
- Connection Material
- Tin
- Features
- Angled Connector, Corrosion Resistant
- Product Type
- Copper Compression Connectors - Lugs
- Panduit Die Index Number
- P42
- Finish/Coating
- Tin-Plated
- Maximum Voltage (kV)
- 35
- Base Material
- Copper
- UL Temperature Rating (°C)
- 90
- Burndy Die Index Number
- 12
- Tongue Type
- Narrow
- Connector Details
- 1 x Terminal
- Product Material
- Copper
- Product Name
- Terminal Connector
- Connector Plating
- Tin
- Product Class
- Wire Termination
Dimensions
- For Wire Size
- 1/0 AWG
- Barrel Size
- Standard
- Tongue Width
- 0.52 in
- Cable Size
- 1/0 AWG
- Length
- 2"
- Width
- 0.52 in
- Overall Length
- 2 in
- Overall Length (In.)
- 2
- Stud Hole Size (mm)
- 6.4
- Wire Strip Length (mm)
- 25.4
- Wire Strip Length (In.)
- 1
- Barrel Length (mm)
- 23.9
- Copper Code Conductor Size (AWG)
- 36526
- Stud Hole Size (In.)
- 44930
- Barrel Length (In.)
- 0.94
- Tongue Width (mm)
- 13.2
- Tongue Width (In.)
- 0.52
- Tongue Thickness (In.)
- 0.15
- Overall Length (mm)
- 49.5
- Tongue Thickness (mm)
- 3.3
Description

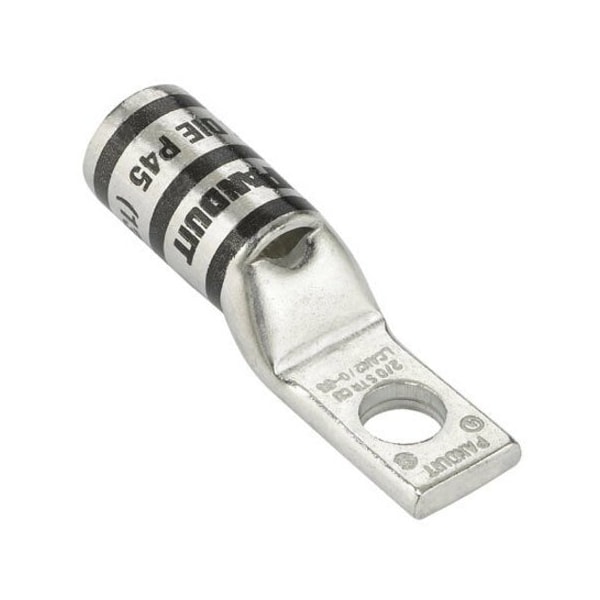

One-hole, standard barrel with window, narrow tongue lug, 1/0 AWG wire, 1/4 stud hole.
