  6. One-Hole Compression Lug, 1/0 AWG Max, Standard Barrel, Copper, Pink

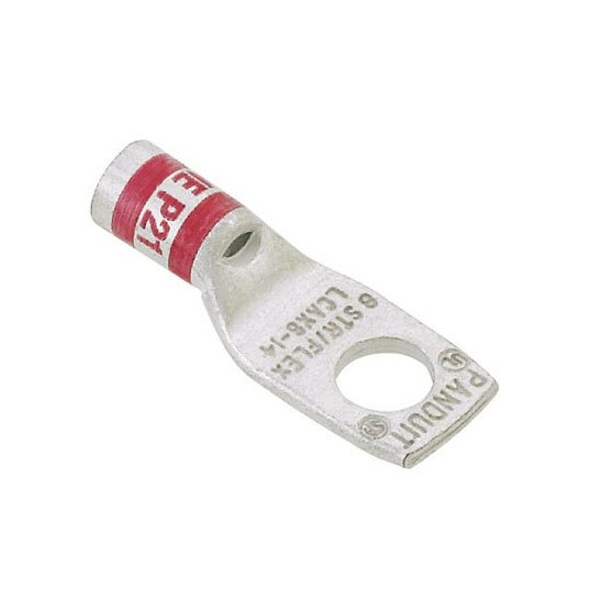

Panduit One-Hole Compression Lug, 1/0 AWG Max, Standard Barrel, Copper, Pink LCAX1/0-58-X - main

One-Hole Compression Lug, 1/0 AWG Max, Standard Barrel, Copper, Pink

  • Mfr # LCAX1/0-58-X

  • Zoro # G0773619

product price:  $9.59
/ea

Key Features

For Wire Size
1/0 AWG
For Conductor Material
Copper
Material
Copper
Barrel Size
Standard
Tongue Width
0.96 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LCAX1/0-58-X
Zoro #
G0773619
UPC #
7498312658
Country of Origin
Mexico

Dimensions

For Wire Size
1/0 AWG
Barrel Size
Standard
Tongue Width
0.96 in
Width
0.96 in
Length
2.38 in
Cable Size
1/0 AWG
Overall Length
2.38 in
Tongue Width (mm)
24.4
Stud Hole Size (mm)
15.9
Tongue Thickness (mm)
2.8
Barrel Length (In.)
0.72
Copper Code Conductor Size (AWG)
36526
Wire Strip Length (mm)
19.1
Tongue Width (In.)
0.96
Tongue Thickness (In.)
0.11
Overall Length (mm)
60.5
Stud Hole Size (In.)
45054
Overall Length (In.)
2.38
Barrel Length (mm)
18.3

Details

Item
One-Hole Compression Lug
For Conductor Material
Copper
Material
Copper
Tongue Angle
Straight
Die Code
12
Color Code
Pink
Connector Type
Standard Barrel
Connection Material
Tin
Connection Type
1 x Terminal
Features
Corrosion Resistant, Angled Connector
Product Type
Copper Compression Connectors - Lugs
Panduit Die Index Number
P42
UL Temperature Rating (°C)
90
Burndy Die Index Number
12
Maximum Voltage (kV)
35
Base Material
Copper
Finish/Coating
Tin-Plated
Tongue Type
Standard
Product Name
Terminal Connector
Connector Details
1 x Terminal
Product Material
Copper
Connector Plating
Tin
Product Class
Wire Termination
Number of Holes
1

Description

Lug Compression Connector,1/0 AWG

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
