  11. One-Hole Compression Lug, 1/2 in Stud, Standard Barrel, Copper, None, 100 PK

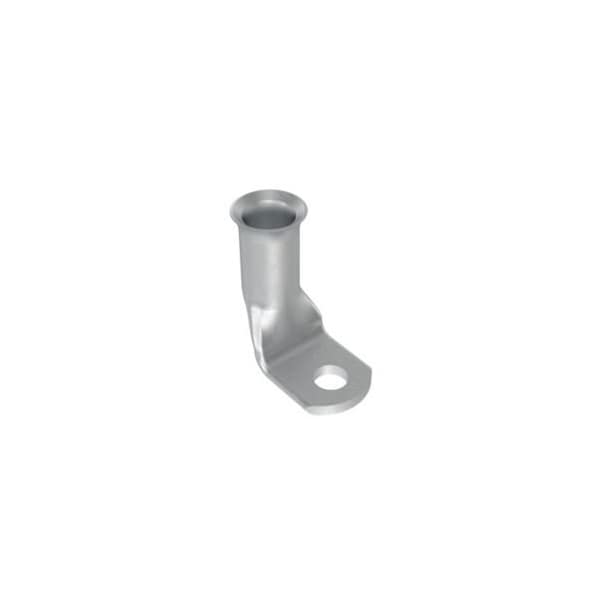

Panduit One-Hole Compression Lug, 1/2 in Stud, Standard Barrel, Copper, None, 100 PK A4/0-12RF-C - main

One-Hole Compression Lug, 1/2 in Stud, Standard Barrel, Copper, None, 100 PK

  • Mfr # A4/0-12RF-C

  • Zoro # G704858720

product price: $980.99
/pk 100, $9.81/ea
Free Shipping & Returns

Key Features

Material
Copper
Color Code
None
Hole Center to Center
0.50 in
Overall Length
1.65 in
Outside Dia.
0.69
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
A4/0-12RF-C
Zoro #
G704858720
UPC #
61305679316
Country of Origin
Mexico

Dimensions

Overall Length
1.65 in
Outside Dia.
0.69
Barrel Length
0.91
Barrel Length (In.)
0.91
Stud Hole Size (mm)
12.7
Wire Strip Length (mm)
23.8
Tongue Thickness (mm)
3
Tongue Width (In.)
1.02
Tongue Width (mm)
25.9
Class K Copper Flex Conductor Size (AWG)
36617
Outer Diameter (In.)
0.69
Outer Diameter (mm)
17.5
Barrel Length (mm)
23.1
Overall Length (In.)
1.65
Tongue Thickness (In.)
0.12
Wire Strip Length (In.)
0.94
Overall Length (mm)
41.9
Inside Diameter (mm)
14.2
Stud Hole Size (In.)
0.5
Inside Diameter (In.)
0.56
Tongue Width
1.02 in
Barrel Size
Standard
For Stud Size
1/2 in

Details

Material
Copper
Color Code
None
Item
One-Hole Compression Lug
Hole Center to Center
0.50 in
Standards
UL Listed for use in US and Canada to UL 486A-486B for power applications, meets US Military Wire Pull Out Specs
Tool Type
Copper Compression Lug
Product Type
Copper Compression Lug
Lug Type
1 Stud Hole Lug
Tongue Type
Round
Base Material
Copper
Finish/Coating
Tin-Plating Meets ASTM B545-97, Class C 320µ-in (8 µm)
UL Temperature Rating (°C)
90
Maximum Voltage (kV)
35
Tongue Angle
90 Degrees Angled
For Conductor Material
Copper
Number of Holes
1

Description

The A4/0-12RF-C Copper Compression Battery Cable Lug, 4/0 AWG, 1/2" Stud with a 90 degree bend are tin plated to meet ASTM Class C specification for corrosion resistance. Manufactured with a standard barrel without an inspection window preventing contaminents from entering. Flared barrel entry for ease of inserting flex conductors. High pullout strength for heavy duty applications and military pullout strength requirements when using Panduit recommended tooling.
