  11. One-Hole Compression Lug, 2 AWG Max, Standard Barrel, Copper, Brown

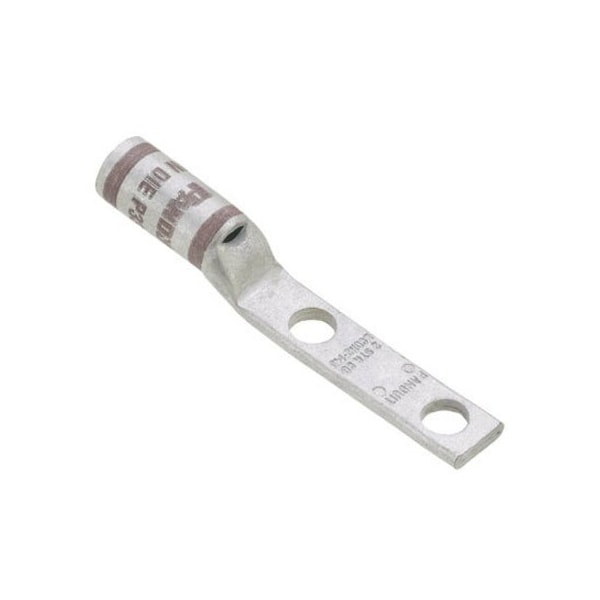

Panduit One-Hole Compression Lug, 2 AWG Max, Standard Barrel, Copper, Brown LCDN2-14A-Q - main

One-Hole Compression Lug, 2 AWG Max, Standard Barrel, Copper, Brown

  • Mfr # LCDN2-14A-Q

  • Zoro # G0777782

product price: $10.49
/ea

Key Features

Cable Size
2 AWG
Connector Type
Standard Barrel
Width
0.42"
Material
Copper
Length
2.4"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LCDN2-14A-Q
Zoro #
G0777782
UPC #
7498344459
Country of Origin
Mexico

Dimensions

Cable Size
2 AWG
Width
0.42"
Length
2.4"
Overall Length
2.4 in
Tongue Width (mm)
10.7
Stud Hole Size (mm)
6.4
Wire Strip Length (mm)
23.8
Wire Strip Length (In.)
15/16
Tongue Width (In.)
0.42
Stud Hole Size (In.)
44930
Barrel Length (mm)
22.4
Tongue Thickness (mm)
3
Barrel Length (In.)
0.88
Copper Code Conductor Size (AWG)
2
Overall Length (mm)
61
Tongue Thickness (In.)
0.12
Overall Length (In.)
2.4
Barrel Size
Standard
Tongue Width
0.42 in
For Wire Size
2 AWG

Details

Connector Type
Standard Barrel
Material
Copper
Color Code
Brown
Item
One-Hole Compression Lug
Standards
CSA certified C22.2 No. 65-13, UL listed 486A-486B File #E52164
Die Code
10
Connection Material
Tin
Connection Type
1 x Terminal
Features
Corrosion Resistant
Base Material
Copper
Stud Hole Spacing (In.)
0.63
Tongue Angle
Straight
Maximum Voltage (kV)
35
Product Type
Copper Compression Connectors - Lugs
Panduit Die Index Number
33
T & B Die Index Number
33
Stud Hole Spacing (mm)
16
Tongue Type
Narrow
UL Temperature Rating (°C)
90
Burndy Die Index Number
10
Finish/Coating
Tin-Plated
Connector Details
1 x Terminal
Product Name
Terminal Connector
Connector Plating
Tin
Product Material
Copper
Product Class
Wire Termination
For Conductor Material
Copper

Description

Lug Compression Connector,No.2 AWG
