  11. One-Hole Compression Lug, 2/0 AWG Max, Standard Barrel, Copper, Black

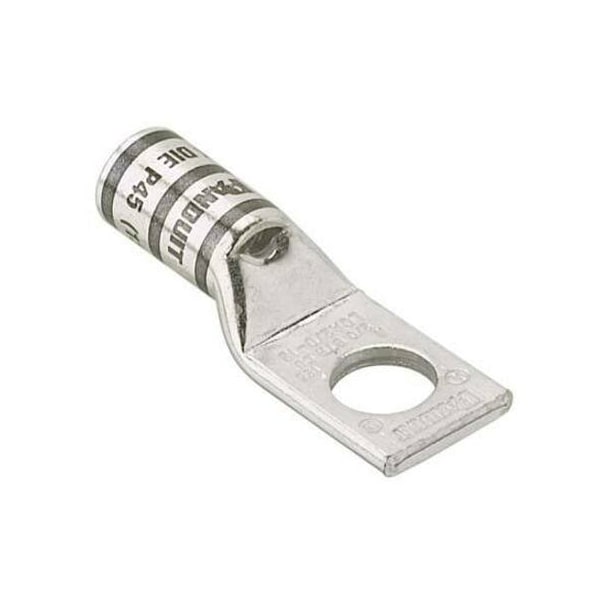

Panduit One-Hole Compression Lug, 2/0 AWG Max, Standard Barrel, Copper, Black LCA2/0-56-X - main

One-Hole Compression Lug, 2/0 AWG Max, Standard Barrel, Copper, Black

  • Mfr # LCA2/0-56-X

  • Zoro # G0771500

product price: $9.69
/ea

Key Features

Cable Size
2/0 AWG
Connector Type
Standard Barrel
Width
0.85"
Material
Copper
Length
2.09"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LCA2/0-56-X
Zoro #
G0771500
UPC #
7498390116
Country of Origin
Mexico

Dimensions

Cable Size
2/0 AWG
Width
0.85"
Length
2.09"
Overall Length
2.09 in
Tongue Thickness (mm)
3.3
Outer Diameter (In.)
0.58
Outer Diameter (mm)
14.73
Copper Code Conductor Size (AWG)
36557
Wire Strip Length (mm)
27
Tongue Thickness (In.)
0.13
Stud Hole Size (In.)
45062
Inside Diameter (mm)
11.43
Wire Strip Length (In.)
42370
Barrel Length (mm)
24.9
Stud Hole Size (mm)
7.9
Inside Diameter (In.)
0.45
Overall Length (In.)
2.08
Barrel Length (In.)
0.98
Overall Length (mm)
52.83
Tongue Width (In.)
0.85
Tongue Width (mm)
21.6
For Wire Size
2/0 AWG
Tongue Width
0.85 in
Barrel Size
Standard

Details

Connector Type
Standard Barrel
Material
Copper
Color Code
Black
Item
One-Hole Compression Lug
Standards
C22.2 No. 65-13, 486A-486B File #E52164
Die Code
13
Connection Type
1 x Terminal
Connection Material
Tin
Features
Angled Connector, Corrosion Resistant
Tongue Type
Standard
Panduit Die Index Number
P45
Maximum Voltage (kV)
35
Finish/Coating
Tin-Plated
Burndy Die Index Number
13
Product Type
Copper Compression Connectors - Lugs
UL Temperature Rating (°C)
90
Base Material
Copper
T & B Die Index Number
13
Tongue Angle
Straight
Lug Type
1 Stud Hole Lug
Product Name
Terminal Connector
Product Material
Copper
Connector Plating
Tin
Connector Details
1 x Terminal
Product Class
Lugs, Splices, Split Bolts & Accessories
For Conductor Material
Copper

Description

Lug Compression Connector,2/0 AWG

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
