  11. One-Hole Compression Lug, 3/0 AWG Max, 1 to 2 in Stud, Standard Barrel, Copper, Orange

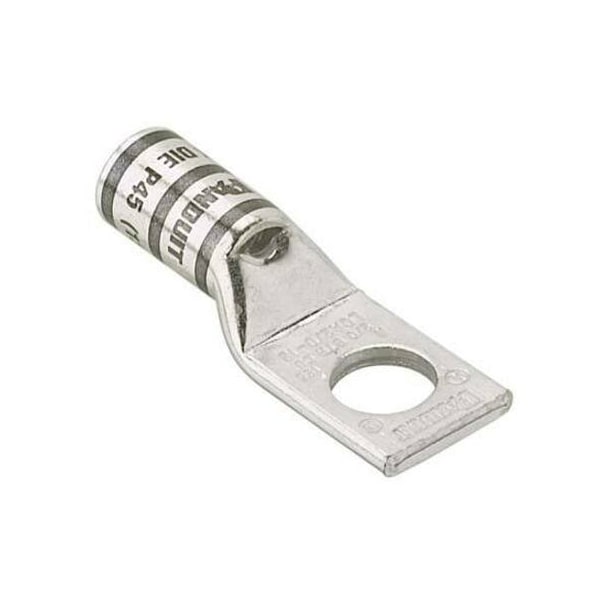

Panduit One-Hole Compression Lug, 3/0 AWG Max, 1 to 2 in Stud, Standard Barrel, Copper, Orange LCA3/0-12-X - main

One-Hole Compression Lug, 3/0 AWG Max, 1 to 2 in Stud, Standard Barrel, Copper, Orange

  • Mfr # LCA3/0-12-X

  • Zoro # G0771948

product price: $10.15
/ea

Key Features

Cable Size
3/0 AWG
Connector Type
Standard Barrel
Width
0.96"
Material
Copper
Length
2.59"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LCA3/0-12-X
Zoro #
G0771948
UPC #
7498390036
Country of Origin
Mexico

Dimensions

Cable Size
3/0 AWG
Width
0.96"
Length
2.59"
Overall Length
2.59 in
Tongue Thickness (In.)
0.13
Barrel Length (mm)
29
Tongue Width (mm)
24.4
Outer Diameter (In.)
0.64
Barrel Length (In.)
1.14
Overall Length (mm)
65.5
Copper Code Conductor Size (AWG)
36586
Tongue Width (In.)
0.96
Wire Strip Length (In.)
42372
Stud Hole Size (In.)
1 to 2
Overall Length (In.)
2.58
Inside Diameter (In.)
0.51
Stud Hole Size (mm)
12.7
Inside Diameter (mm)
12.95
Wire Strip Length (mm)
30.2
Outer Diameter (mm)
16.25
Tongue Thickness (mm)
3.3
Tongue Width
0.96 in
Barrel Size
Standard
For Wire Size
3/0 AWG
For Stud Size
1 to 2 in

Details

Connector Type
Standard Barrel
Material
Copper
Color Code
Orange
Item
One-Hole Compression Lug
Standards
C22.2 No. 65-13, 486A-486B File #E52164
Die Code
14
Connection Type
1 x Terminal
Connection Material
Tin
Features
Corrosion Resistant
Finish/Coating
Tin-Plated
Maximum Voltage (kV)
35
Tongue Angle
Straight
UL Temperature Rating (°C)
90
Product Type
Copper Compression Connectors - Lugs
Panduit Die Index Number
P50
Tongue Type
Standard
Burndy Die Index Number
14
T & B Die Index Number
14
Lug Type
1 Stud Hole Lug
Base Material
Copper
Connector Plating
Tin
Product Name
Terminal Connector
Product Material
Copper
Connector Details
1 x Terminal
Product Class
Lugs, Splices, Split Bolts & Accessories
Number of Holes
1
For Conductor Material
Copper

Description

Lug Compression Connector,3/0 AWG
