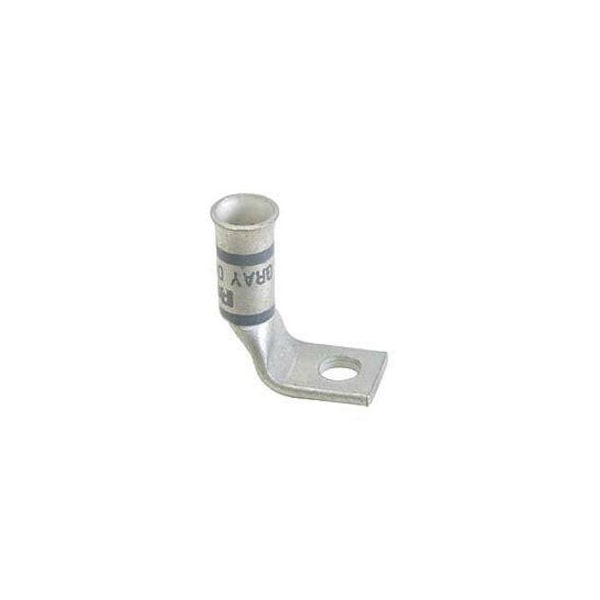

One-Hole Compression Lug, 3/0 AWG Max, 1 to 2 in Stud, Standard Barrel, Copper, Purple
- Mfr # LCAF3/0-12F-X
- Zoro # G0772593
product price:Â
$
16.49
/ea
Key Features
For Wire Size
3/0 AWG
For Conductor Material
Copper
For Stud Size
1 to 2 in
Material
Copper
Barrel Size
Standard
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- LCAF3/0-12F-X
- Zoro #
- G0772593
- UPC #
- 7498387716
- Country of Origin
- Mexico
- Item
- One-Hole Compression Lug
- For Conductor Material
- Copper
- Material
- Copper
- Tongue Angle
- 90 Degrees Angled
- Color Code
- Purple
- Connector Type
- Flared Barrel
- Connection Type
- 1 x Terminal
- Connection Material
- Tin
- Features
- Corrosion Resistant, 90° Angled Connector
- Product Type
- Copper Compression Connectors - Lugs
- Maximum Voltage (V)
- 35
- Product Material
- Copper
- Connector Details
- 1 x Terminal
- Product Name
- Terminal Connector
- Connector Plating
- Tin
- Product Class
- Wire Termination
- Number of Holes
- 1
Dimensions
- For Wire Size
- 3/0 AWG
- For Stud Size
- 1 to 2 in
- Barrel Size
- Standard
- Tongue Width
- 1.06 in
- Length
- 2.12"
- Width
- 1.06 in
- Cable Size
- 3/0 AWG
- Overall Length
- 2.12 in
- Wire Strip Length (mm)
- 36.5
- Stud Hole Size (In.)
- 1 to 2
- Tongue Width (In.)
- 1.06
- Tongue Thickness (mm)
- 3.6
- Overall Length (In.)
- 2.12
- Stud Hole Size (mm)
- 12.7
- Overall Length (mm)
- 53.9
- Barrel Length (mm)
- 34.3
- Barrel Length (In.)
- 1.35
- Tongue Width (mm)
- 26.9
- Tongue Thickness (In.)
- 0.14
Description
Lug Compression Connector,3/0 AWG
