  11. One-Hole Compression Lug, 3/0 AWG Max, 1/2 in Stud, Standard Barrel, Copper, Orange

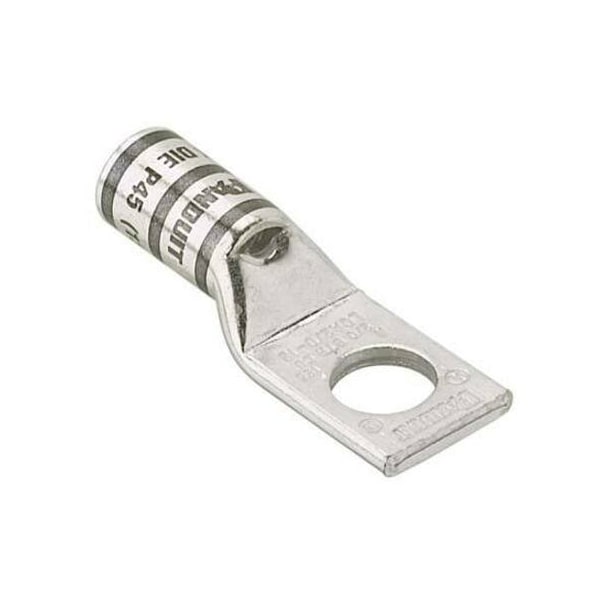

Panduit One-Hole Compression Lug, 3/0 AWG Max, 1/2 in Stud, Standard Barrel, Copper, Orange LCA3/0-56-X - main

One-Hole Compression Lug, 3/0 AWG Max, 1/2 in Stud, Standard Barrel, Copper, Orange

  • Mfr # LCA3/0-56-X

  • Zoro # G0771911

product price: $10.09
/ea

Key Features

Cable Size
3/0 AWG
Connector Type
Standard Barrel
Width
0.96"
Material
Copper
Length
2.28"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LCA3/0-56-X
Zoro #
G0771911
UPC #
7498390118
Country of Origin
Mexico

Dimensions

Cable Size
3/0 AWG
Width
0.96"
Length
2.28"
Overall Length
2.28 in
Outer Diameter (mm)
16.25
Tongue Thickness (In.)
0.13
Inside Diameter (mm)
12.95
Tongue Thickness (mm)
3.3
Wire Strip Length (mm)
30.2
Stud Hole Size (mm)
7.9
Inside Diameter (In.)
0.51
Barrel Length (In.)
1.14
Copper Code Conductor Size (AWG)
36586
Barrel Length (mm)
29
Overall Length (In.)
2.27
Overall Length (mm)
57.7
Wire Strip Length (In.)
42372
Tongue Width (In.)
0.96
Tongue Width (mm)
24.4
Stud Hole Size (In.)
45062
Outer Diameter (In.)
0.64
For Wire Size
3/0 AWG
For Stud Size
1/2 in
Tongue Width
0.96 in
Barrel Size
Standard

Details

Connector Type
Standard Barrel
Material
Copper
Color Code
Orange
Item
One-Hole Compression Lug
Die Code
14
Standards
C22.2 No. 65-13, 486A-486B File #E52164
Connection Material
Tin
Connection Type
1 x Terminal
Features
Angled Connector, Corrosion Resistant
Finish/Coating
Tin-Plated
Product Type
Copper Compression Connectors - Lugs
Maximum Voltage (kV)
35
Lug Type
1 Stud Hole Lug
Tongue Type
Standard
Burndy Die Index Number
14
UL Temperature Rating (°C)
90
Base Material
Copper
Tongue Angle
Straight
T & B Die Index Number
14
Panduit Die Index Number
P50
Product Name
Terminal Connector
Connector Plating
Tin
Connector Details
1 x Terminal
Product Material
Copper
Product Class
Lugs, Splices, Split Bolts & Accessories
Number of Holes
1
For Conductor Material
Copper

Description

Lug Compression Connector,3/0 AWG
