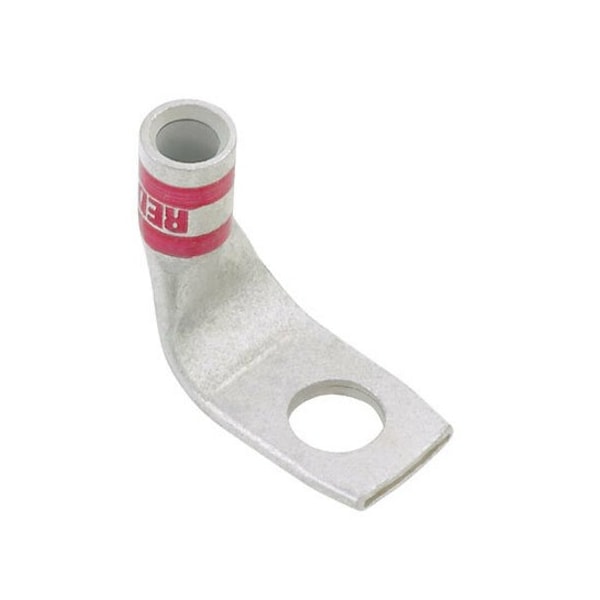

One-Hole Compression Lug, 4 AWG Max, Standard Barrel, Copper, Gray
- Mfr # LCAX4-56F-L
- Zoro # G0774118
product price:Â
$
4.39
/ea
Sold in multiples of 2 for
$8.78
Key Features
For Wire Size
4 AWG
For Conductor Material
Copper
Material
Copper
Barrel Size
Standard
Tongue Width
0.55 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- LCAX4-56F-L
- Zoro #
- G0774118
- UPC #
- 7498343417
- Country of Origin
- Mexico
- Item
- One-Hole Compression Lug
- For Conductor Material
- Copper
- Material
- Copper
- Tongue Angle
- 90 Degrees Angled
- Die Code
- 8
- Color Code
- Gray
- Connector Type
- Standard Barrel
- Connection Type
- 1 x Terminal
- Connection Material
- Tin
- Features
- 90° Angled Connector, Corrosion Resistant
- Finish/Coating
- Tin-Plated
- Tongue Type
- Standard
- Maximum Voltage (kV)
- 35
- Base Material
- Copper
- Burndy Die Index Number
- 8
- Product Type
- Copper Compression Connectors - Lugs
- Panduit Die Index Number
- P29
- UL Temperature Rating (°C)
- 90
- Product Name
- Terminal Connector
- Connector Plating
- Tin
- Product Material
- Copper
- Connector Details
- 1 x Terminal
- Product Class
- Wire Termination
Dimensions
- For Wire Size
- 4 AWG
- Barrel Size
- Standard
- Tongue Width
- 0.55 in
- Cable Size
- 4 AWG
- Width
- 0.55 in
- Length
- 1.24"
- Overall Length
- 1.24 in
- Class M Copper Flex Conductor Size (AWG)
- 4
- Copper Code Conductor Size (AWG)
- 4
- Barrel Length (mm)
- 13.5
- Class G Copper Flex Conductor Size (AWG)
- 4
- Tongue Thickness (mm)
- 2.3
- DLO Copper Flex Conductor Size (AWG)
- 4
- Tongue Width (In.)
- 0.55
- Class I Copper Flex Conductor Size (AWG)
- 4
- Class H Copper Flex Conductor Size (AWG)
- 4
- Tongue Thickness (In.)
- 0.09
- Wire Strip Length (mm)
- 15.8
- Overall Length (mm)
- 31.5
- Tongue Width (mm)
- 14
- Barrel Length (In.)
- 0.53
- Stud Hole Size (mm)
- 7.9
- Stud Hole Size (In.)
- 45062
- Class K Copper Flex Conductor Size (AWG)
- 4
- Overall Length (In.)
- 1.24
Description
Lug Compression Connector,No.4 AWG
