  11. One-Hole Compression Lug, 4 to 2 AWG Max, Standard Barrel, Copper, Gray

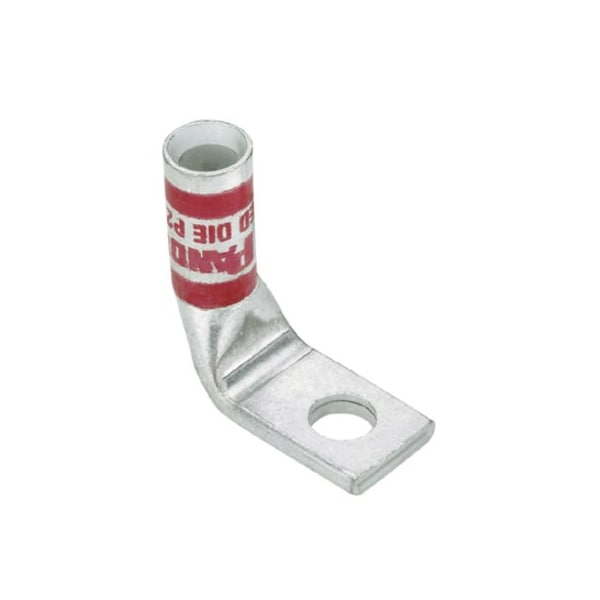

Panduit One-Hole Compression Lug, 4 to 2 AWG Max, Standard Barrel, Copper, Gray LCA4-56F-L - main

One-Hole Compression Lug, 4 to 2 AWG Max, Standard Barrel, Copper, Gray

  • Mfr # LCA4-56F-L

  • Zoro # G0772051

product price: $4.85
/ea
Sold in multiples of 2 for $9.70

Key Features

Cable Size
4 to 3 AWG STR, 2 AWG SOL
Connector Type
Standard Barrel
Width
0.55"
Material
Copper
Length
1.24"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LCA4-56F-L
Zoro #
G0772051
UPC #
7498355907
Country of Origin
Mexico

Dimensions

Cable Size
4 to 3 AWG STR, 2 AWG SOL
Width
0.55"
Length
1.24"
Overall Length
1.24 in
Tongue Width (In.)
0.55
Barrel Length (mm)
20.6
Wire Strip Length (mm)
22.2
Tongue Thickness (In.)
0.09
Overall Length (mm)
31.5
Barrel Length (In.)
0.81
Overall Length (In.)
1.24
Tongue Thickness (mm)
2.3
Copper Code Conductor Size (AWG)
4
Stud Hole Size (In.)
45062
Stud Hole Size (mm)
7.9
Tongue Width (mm)
14
Tongue Width
0.55 in
Barrel Size
Standard
For Wire Size
4 to 2 AWG

Details

Connector Type
Standard Barrel
Material
Copper
Color Code
Gray
Item
One-Hole Compression Lug
Die Code
8
Standards
C22.2 No. 65-13, 486A-486B File #E52164
Connection Material
Tin
Connection Type
1 x Terminal
Features
90° Angled Connector, Corrosion Resistant
Tongue Type
Standard
UL Temperature Rating (°C)
90
Finish/Coating
Tin-Plated
Tongue Angle
90 Degrees Angled
Panduit Die Index Number
P29
Maximum Voltage (kV)
35
Base Material
Copper
Product Type
Copper Compression Connectors - Lugs
Burndy Die Index Number
8
Connector Plating
Tin
Product Material
Copper
Connector Details
1 x Terminal
Product Name
Terminal Connector
Product Class
Wire Termination
For Conductor Material
Copper

Restrictions
