  11. One-Hole Compression Lug, 450 kcmil Max, 1 to 2 in Stud, Standard Barrel, Copper, Brown

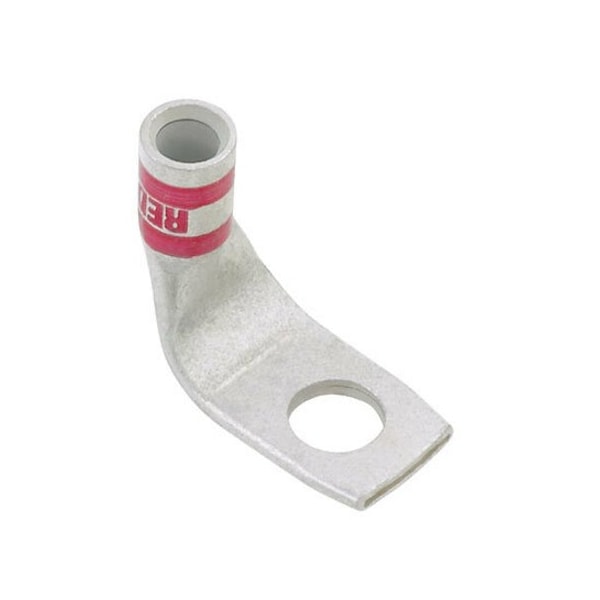

Panduit One-Hole Compression Lug, 450 kcmil Max, 1 to 2 in Stud, Standard Barrel, Copper, Brown LCAX450-12F-6 - main

One-Hole Compression Lug, 450 kcmil Max, 1 to 2 in Stud, Standard Barrel, Copper, Brown

  • Mfr # LCAX450-12F-6

  • Zoro # G0774127

product price: $57.59
/ea

Key Features

Cable Size
450 kcmil
Connector Type
Standard Barrel
Width
1.7"
Material
Copper
Length
2.95"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LCAX450-12F-6
Zoro #
G0774127
UPC #
7498343599
Country of Origin
Mexico

Dimensions

Cable Size
450 kcmil
Width
1.7"
Length
2.95"
Overall Length
2.95 in
Tongue Width (mm)
43.2
Class G Copper Flex Conductor Size (kcmil)
450
Barrel Length (In.)
1.4
Tongue Width (In.)
1.7
Tongue Thickness (In.)
0.26
Class H Copper Flex Conductor Size (kcmil)
450
Class K Copper Flex Conductor Size (kcmil)
450
Tongue Thickness (mm)
6.6
Wire Strip Length (mm)
36.5
Barrel Length (mm)
35.6
Overall Length (In.)
2.95
Class M Copper Flex Conductor Size (kcmil)
450
Overall Length (mm)
74.9
Stud Hole Size (mm)
12.7
Stud Hole Size (In.)
1 to 2
Class I Copper Flex Conductor Size (kcmil)
450
Tongue Width
1.70 in
For Stud Size
1 to 2 in
Barrel Size
Standard
For Wire Size
450 kcmil

Details

Connector Type
Standard Barrel
Material
Copper
Color Code
Brown
Item
One-Hole Compression Lug
Die Code
20
Connection Material
Tin
Connection Type
1 x Terminal
Features
Corrosion Resistant, 90° Angled Connector
Tongue Type
Standard
Tongue Angle
90 Degrees Angled
Burndy Die Index Number
20
Base Material
Copper
Product Type
Copper Compression Connectors - Lugs
Maximum Voltage (kV)
35
Panduit Die Index Number
P87
Finish/Coating
Tin-Plated
UL Temperature Rating (°C)
90
Connector Plating
Tin
Connector Details
1 x Terminal
Product Name
Terminal Connector
Product Material
Copper
Product Class
Wire Termination
For Conductor Material
Copper

Description

Lug Compression Connector,450 Kcmil
