Shop PANDUIT

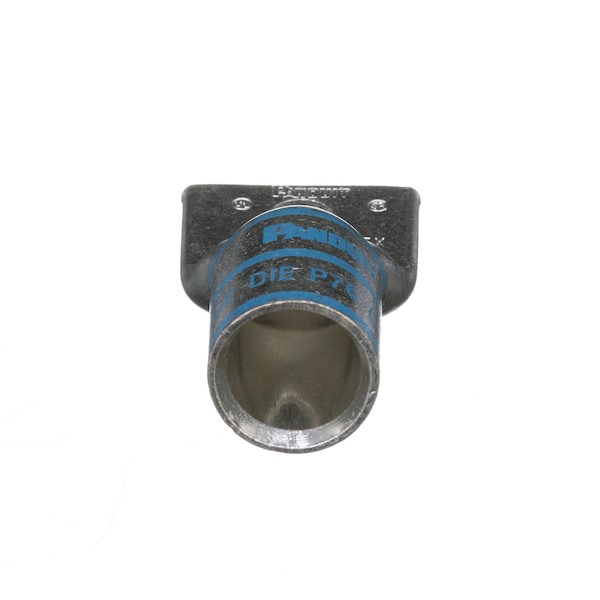

One-Hole Compression Lug, Standard Barrel, Copper, Blue

  • Mfr # LCAX350-38-6

  • Zoro # G204858657

product price:  $21.99
/ea

Key Features

For Conductor Material
Copper
Material
Copper
Barrel Size
Standard
Tongue Width
1.54 in
Tongue Angle
Straight
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LCAX350-38-6
Zoro #
G204858657
UPC #
7498343588
Country of Origin
Mexico

Dimensions

Barrel Size
Standard
Tongue Width
1.54 in
Overall Length
2.93 in
Outside Dia.
1.06
Barrel Length (mm)
32.8
DLO Copper Flex Conductor Size (kcmil)
373.7
Wire Strip Length (mm)
34.9
Class G Copper Flex Conductor Size (kcmil)
350
Overall Length (In.)
2.93
Stud Hole Size (mm)
9.5
Overall Length (mm)
74.4
Barrel Length (In.)
1.29
Outer Diameter (mm)
26.92
Wire Strip Length (In.)
39450
Class K Copper Flex Conductor Size (kcmil)
350
Tongue Thickness (In.)
0.22
Class I Copper Flex Conductor Size (kcmil)
350
Inside Diameter (mm)
21.33
Outer Diameter (In.)
1.06
Class H Copper Flex Conductor Size (kcmil)
350
Class M Copper Flex Conductor Size (kcmil)
350
Stud Hole Size (In.)
44993
Tongue Width (mm)
39.1
Tongue Width (In.)
1.54
Inside Diameter (In.)
0.84
Tongue Thickness (mm)
5.6

Details

Item
One-Hole Compression Lug
For Conductor Material
Copper
Material
Copper
Tongue Angle
Straight
Die Code
19
Color Code
Blue
Standards
C22.2 No. 65-13, 486A-486B File #E52164
Tool Type
Tin-Plated Copper Compression Connectors - Lugs
UL Temperature Rating (°C)
90
T & B Die Index Number
19
Base Material
Copper
Tongue Type
Standard
Lug Type
1 Stud Hole Lug
Standards Met
C22.2 No. 65-13, 486A-486B File #E52164
Maximum Voltage (kV)
35
Product Type
Copper Compression Connectors - Lugs
Panduit Die Index Number
P76
Burndy Die Index Number
19
Finish/Coating
Tin-Plated
Product Class
Lugs, Splices, Split Bolts & Accessories

Description

The LCAX350-38-6 Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90°C.
