  11. One-Hole Compression Lug, Standard Barrel, Copper, None, 100 PK

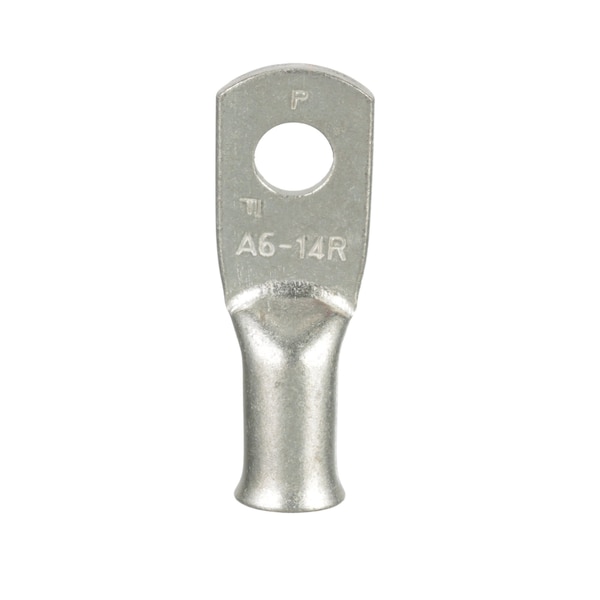

Panduit One-Hole Compression Lug, Standard Barrel, Copper, None, 100 PK A6-14R-C - main

One-Hole Compression Lug, Standard Barrel, Copper, None, 100 PK

  • Mfr # A6-14R-C

  • Zoro # G304858960

product price: $131.95
/pk 100, $1.32/ea
Free Shipping & Returns

Key Features

Material
Copper
Color Code
None
Tongue Width - Wire Connector
0.54
Standards
UL Listed for use in US and Canada to UL 486A-486B for power applications, meets US Military Wire Pull Out Specs
Overall Length
1.47 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
A6-14R-C
Zoro #
G304858960
UPC #
61305666839
Country of Origin
Mexico

Dimensions

Tongue Width - Wire Connector
0.54
Overall Length
1.47 in
Barrel Length
0.5
Barrel Length (In.)
0.5
Class K Copper Flex Conductor Size (AWG)
6
Tongue Width (mm)
13.716
Stud Hole Size (mm)
6.35
Barrel Length (mm)
12.7
Stud Hole Size (In.)
44930
Tongue Thickness (mm)
1.778
Overall Length (In.)
1.47
Tongue Thickness (In.)
0.07
Overall Length (mm)
37.338
Tongue Width (In.)
0.54
Barrel Size
Standard
Tongue Width
0.54 in

Details

Material
Copper
Color Code
None
Item
One-Hole Compression Lug
Standards
UL Listed for use in US and Canada to UL 486A-486B for power applications, meets US Military Wire Pull Out Specs
Tool Type
Lug
Tongue Style
Round
Hole Center to Center
44565
Finish
Tin-Plating Meets ASTM B545-97, Class C 320µ-in (8 µm)
Tongue Type
Round
Maximum Voltage (kV)
35
Tongue Angle
Straight
Finish/Coating
Tin-Plating Meets ASTM B545-97, Class C 320µ-in (8 µm)
Panduit Die Index Number
6
Base Material
Copper
UL Temperature Rating (°C)
90
Standards Met
UL Listed for use in US and Canada to UL 486A-486B for power applications, meets US Military Wire Pull Out Specs
Lug Type
1 Stud Hole Lug
Product Type
Compression Connectors - Lug
Product Class
Wire Termination
Number of Holes
1
For Conductor Material
Copper

Description

Battery Cable Lug, 6 AWG, 1/4" Stud

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
