  11. One-Hole Compression Lug, Standard Barrel, Copper, None

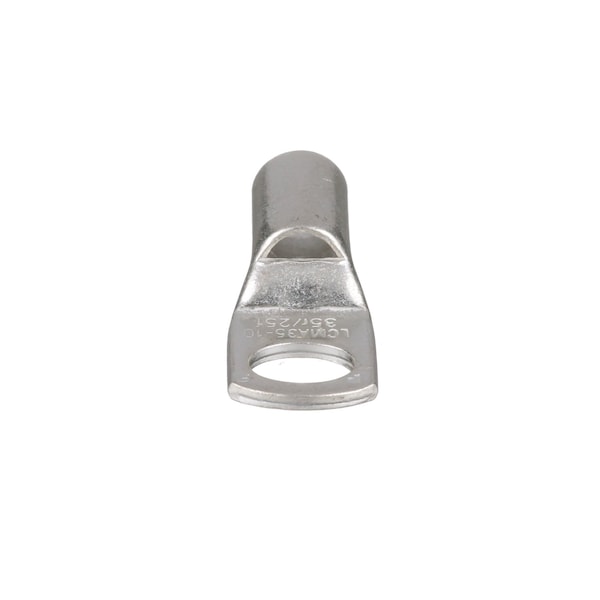

Panduit One-Hole Compression Lug, Standard Barrel, Copper, None LCMA35-10-C - main

One-Hole Compression Lug, Standard Barrel, Copper, None

  • Mfr # LCMA35-10-C

  • Zoro # G2770804

product price: $4.15
/ea
Sold in multiples of 2 for $8.30

Key Features

For Conductor Material
Copper
Material
Copper
Barrel Size
Standard
Tongue Width
0.61 in
Tongue Angle
Straight
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LCMA35-10-C
Zoro #
G2770804
UPC #
7498376941
Country of Origin
India

Dimensions

Barrel Size
Standard
Tongue Width
0.61 in
Overall Length
42 mm
Length
1.7"
Stud Hole Size (mm)
11
Overall Length (In.)
1.65
Metric Class 5f-6f Copper Conductor Size (mm²)
25
Barrel Length (In.)
0.68
Tongue Thickness (mm)
2.1
Outer Diameter (mm)
10.4
Overall Length (mm)
42
Inside Diameter (mm)
8.2
Tongue Width (mm)
15.5
Wire Strip Length (mm)
19
Barrel Length (mm)
17.5
Wire Strip Length (In.)
0.74
Tongue Width (In.)
0.61
Tongue Thickness (In.)
0.08
Metric Class 2r Copper Conductor Size (mm²)
35
Stud Hole Size (In.)
0.43
Inside Diameter (In.)
0.32
Outer Diameter (In.)
0.41

Details

Item
One-Hole Compression Lug
For Conductor Material
Copper
Material
Copper
Tongue Angle
Straight
Color Code
None
Standards
Meets EN 61238-1:2003/IEC 61238-1:2003 Class B WITH Class 2r Wire, UKCA compliant, CE compliant
Features
Corrosion Resistant
Finish/Coating
Tin-Plated
Panduit Die Index Number
P29
UL Temperature Rating (°C)
90
Product Type
Copper Compression Connectors - Metric Lugs
Tongue Type
Standard
Base Material
Copper
Maximum Voltage (kV)
35
Lug Type
Standard
Product Name
Terminal Connector
Connector Details
1 x Terminal
Product Material
Copper
Connector Plating
Tin
Product Class
Mechanical Lugs

Description

Copper Compression Metric Lug, 1 Hole, 35mm2 Wire, M10 Stud

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
