  11. One-Hole Compression Lug, Standard Barrel, Copper, None

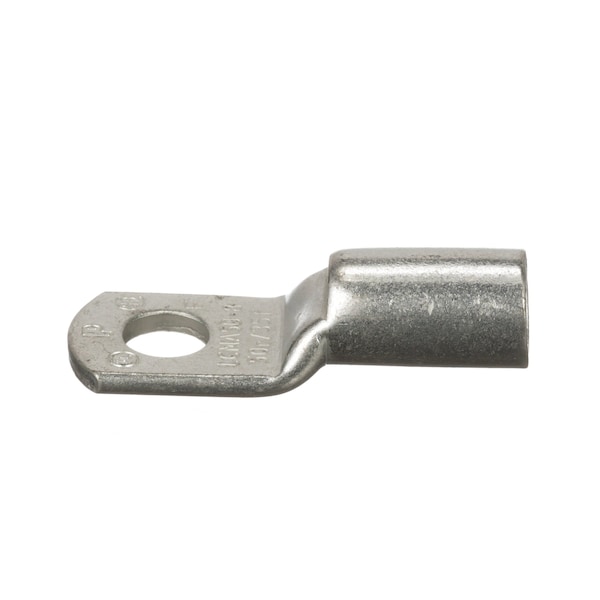

Panduit One-Hole Compression Lug, Standard Barrel, Copper, None LCMA50-8-L - main

One-Hole Compression Lug, Standard Barrel, Copper, None

  • Mfr # LCMA50-8-L

  • Zoro # G2800624

product price: $4.65
/ea
Sold in multiples of 2 for $9.30

Key Features

For Conductor Material
Copper
Material
Copper
Barrel Size
Standard
Tongue Width
0.70 in
Tongue Angle
Straight
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LCMA50-8-L
Zoro #
G2800624
UPC #
7498376944
Country of Origin
India

Dimensions

Barrel Size
Standard
Tongue Width
0.70 in
Length
1.8"
Wire Strip Length (In.)
0.85
Metric Class 2r Copper Conductor Size (mm²)
50
Stud Hole Size (mm)
9
Barrel Length (In.)
0.48
Wire Strip Length (mm)
21.8
Overall Length (In.)
1.83
Inside Diameter (In.)
0.38
Tongue Thickness (In.)
0.09
Tongue Width (mm)
18
Outer Diameter (In.)
0.48
Barrel Length (mm)
20.3
Stud Hole Size (In.)
0.35
Overall Length (mm)
46.5
Tongue Thickness (mm)
2.5
Inside Diameter (mm)
9.8
Tongue Width (In.)
0.7
Outer Diameter (mm)
12.3
Metric Class 5f-6f Copper Conductor Size (mm²)
35

Details

Item
One-Hole Compression Lug
For Conductor Material
Copper
Material
Copper
Tongue Angle
Straight
Color Code
None
Standards
Meets EN 61238-1:2003/IEC 61238-1:2003 Class B WITH Class 2r Wire, UKCA compliant, CE compliant
Features
Corrosion Resistant
Maximum Voltage (kV)
35
UL Temperature Rating (°C)
90
Product Type
Copper Compression Connectors - Metric Lugs
Finish/Coating
Tin-Plated
Tongue Type
Standard
Panduit Die Index Number
P37
Lug Type
Standard
Base Material
Copper
Product Material
Copper
Connector Plating
Tin
Connector Details
1 x Terminal
Product Name
Terminal Connector
Product Class
Wire Termination
Number of Holes
1

Description

Copper Compression Metric Lug, 1 Hole, 50mm2 Wire, M8 Stud

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
