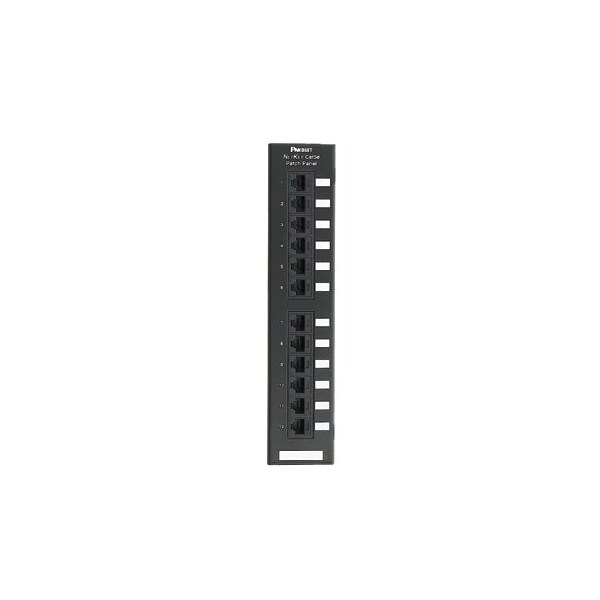

Panduit Punchdown Patch Panel, Cat 6, Flat, 1 NK6PPG12WY - main

Punchdown Patch Panel, Cat 6, Flat, 1

  • Mfr # NK6PPG12WY

  • Zoro # G504858234

product price: $130.99
/ea
Free Shipping & Returns

Key Features

Panel Style
Flat
Panel Type
Punchdown
Number of Ports
12
Material
Steel
Standards
Meets all TIA/EIA-568-C.2 Category 6 and ISO 11801 2nd Edition Class E channel requirements at swept frequencies up to 250 MHz, Meets ANSI/TIA-568-C.2 and ISO 11801 Category 6 component requirements at swept frequencies up to 250 MHz, Complies with ANSI/TIA-1096A (formerly FCC Part 68); Meets IEC 60603-7, Supports IEEE 802.3af/802.3at and proposed 802.3bt type 3 and type 4 PoE applications, UL 1863 approved, and RoHS Complaint
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
NK6PPG12WY
Zoro #
G504858234
UPC #
7498305579
Country of Origin
Mexico

Dimensions

Height
10 in
Overall Height
10
Overall Length
1 in
Overall Width
2.09
Width
2.09 in
Depth
1 in
Overall Depth (mm)
25.4
Overall Length (mm)
25.4
Overall Height (mm)
254
Overall Height (In.)
10
Overall Width (In.)
2.09
Overall Width (mm)
53.1
Overall Depth (In.)
1
Overall Length (In.)
1

Details

Panel Style
Flat
Panel Type
Punchdown
Number of Ports
12
Material
Steel
Standards
Meets all TIA/EIA-568-C.2 Category 6 and ISO 11801 2nd Edition Class E channel requirements at swept frequencies up to 250 MHz, Meets ANSI/TIA-568-C.2 and ISO 11801 Category 6 component requirements at swept frequencies up to 250 MHz, Complies with ANSI/TIA-1096A (formerly FCC Part 68); Meets IEC 60603-7, Supports IEEE 802.3af/802.3at and proposed 802.3bt type 3 and type 4 PoE applications, UL 1863 approved, and RoHS Complaint
Color
Black
Product Type
Punchdown
Module Type
RJ45
Performance Level
Category 6
Maximum Operating Temperature (°C)
65
Identification Type
Adhesive Label
Minimum Operating Temperature (°F)
-14
Termination Style
Punchdown
Patch Panel Style
Flat
Maximum Operating Temperature (°F)
149
Number of Rack Units
1
Minimum Operating Temperature (°C)
-10
Product Class
Copper Systems
Max Operating Temperature
65 degrees celsius
Min Operating Temperature
-10 degrees celsius

Description

The NetKey Flat Punchdown Keystone Patch Panel terminates 4-pair, 22–26 AWG, 100-ohm twisted pair cable. These Cat 6 patch panels mount to an 89D bracket and incudes 12 ports. The RJ45 interface provides a quick plug and play connection to RJ45 patch cords. This punchdown patch panel is made of steel and is black.

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
