  11. Ring Terminal, #10 Stud Size, 10 AWG, 600 V, Heat Shrink Insulated, Yellow, Crimp Termination Only

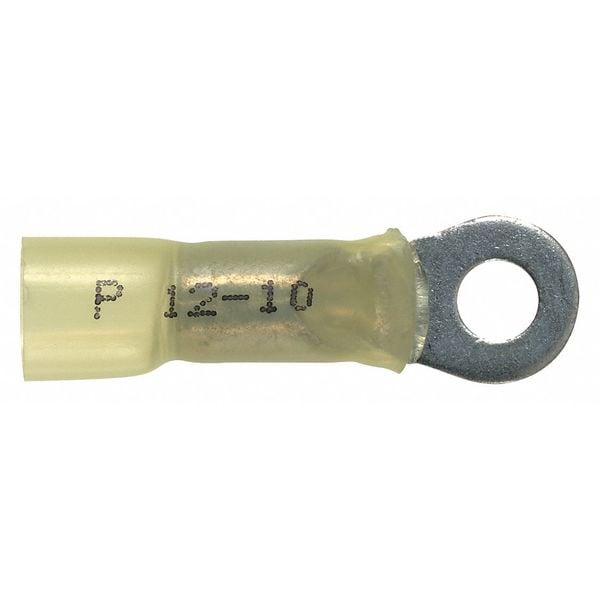

Panduit Ring Terminal, #10 Stud Size, 10 AWG, 600 V, Heat Shrink Insulated, Yellow, Crimp Termination Only PH10-10R-E - main

Ring Terminal, #10 Stud Size, 10 AWG, 600 V, Heat Shrink Insulated, Yellow, Crimp Termination Only

  • Mfr # PH10-10R-E

  • Zoro # G0287467

product price: $34.10
/pk 20, $1.71/ea

Key Features

Terminal Shape
Ring
Termination Style
Crimp Termination Only
Insulation Color
Yellow
Minimum Wire Size
12 AWG
Insulation Type
Heat Shrink
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PH10-10R-E
Zoro #
G0287467
UPC #
074983818112
Country of Origin
Mexico

Dimensions

Maximum Wire Size
10 AWG
Minimum Wire Size
12 AWG
Stud Size
#10
Tongue Width - Wire Connector
0.37 in
Overall Length
1.2 in
Width
0.4"
Tongue Width
0.37 in
Strip Length
3/8 in
Barrel Length
0.25 in
Maximum Wire Insulation Diameter (In.)
0.24
Maximum Metric Conductor Size (mm²)
6
Wire Strip Length (In.)
45062
Minimum Metric Conductor Size (mm²)
4

Details

Item
Ring Terminal
Terminal Shape
Ring
Termination Style
Crimp Termination Only
Insulation Color
Yellow
Insulation Type
Heat Shrink
Contact Material
Copper
Maximum Voltage
600 V
Minimum Operating Temperature
230 Degrees F
Maximum Operating Temperature
257 Degrees F
Standards
CSA C22.2 No. 65, CSA LR31212, cULus Listed 587H E52164, UL 486A, UL 486B
Connection Type
Crimp
Green Environmental Attribute
Does Not Contain PVC
Seam
Brazed
Connection Material
Copper
Max. Temp.
230 Degrees F
Terminal Connection
Crimp
Wire Range
12 to 10 AWG
Features
Flame Retardant
For Use With
CT-310
Seam Style
Brazed
Contact Finish
Tin
UL 94 Flammability Rating
HB, V-2
Insulation Material
Polyolefin
Compatible Manufacturer Model Number
CT-310
Special Features
Heat Shrink Installation is Completed with a Standard Heat Gun, Heat Shrink Sleeving Forms a Protective Barrier to Provide Environmentally Sealed Terminations Ideal for High Moisture Applications, Ring Tongue Design Assures a Secure Connection in High Vibration Applications, Shrink Temperature 300 Degrees F (150 Degrees C)
Insulation Dia
0.24 in
Environmentally Friendly
Yes
Base Material
Copper
Sub Brand
Pan-Term
Barrel Type
Standard
Flammability Rating
UL94-HB

Description

Ring Terminal, Insulation Color Yellow, Insulation Material Heat Shrink, Maximum Temperature 257 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 12 AWG, Maximum Wire Size 10 AWG, Termination Style Crimp, Tongue Width 0.37 in, Contact Finish Tin, Contact Material Copper, UL 94 Flammability Rating HB, V-2, Standards CSA C22.2 No. 65, UL 486A, UL 486B, Barrel Length 0.25 in, Barrel Style Brazed, Compatible Grainger Part Number 377D97, Compatible Manufacturer Model Number CT-310
