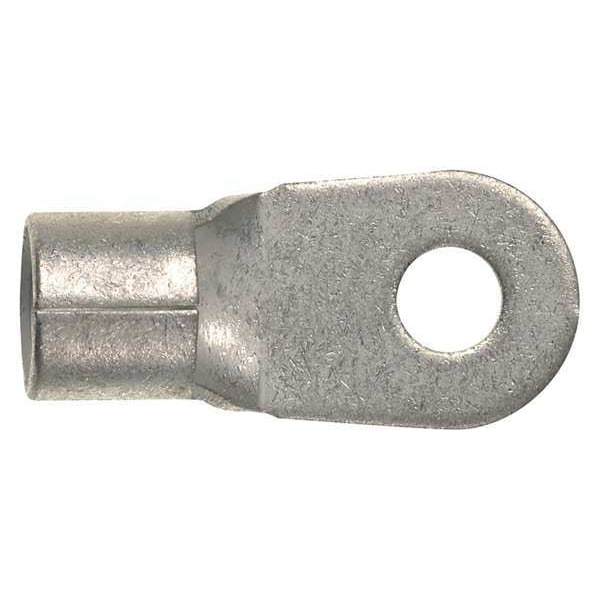

Ring Terminal, #10 Stud Size, 6 AWG, 2,000 V, Bare Insulated, Bare, Crimp Termination Only, 20 PK
Mfr # P6-10R-E
Zoro # G0287607
product price: $36.19
/pk 20, $1.81/eaKey Features
Terminal Shape
Ring
Termination Style
Crimp Termination Only
Insulation Color
Bare
Maximum Wire Size
6 AWG
Minimum Wire Size
6 AWG
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
P6-10R-E
Zoro #
G0287607
UPC #
074983870660
Country of Origin
Mexico
Dimensions
Maximum Wire Size
6 AWG
Minimum Wire Size
6 AWG
Stud Size
#10
Tongue Width - Wire Connector
0.47 in
Overall Length
1.21 in
Barrel Inside Dia.
0.23 in
Width
0.5"
Tongue Thickness
0.05 in
Tongue Length
0.97 in
Barrel Inside Diameter
0.23 in
Barrel Outside Diameter
0.23 in
Barrel Length
0.49 in
Strip Length
1/2 in
Tongue Width
0.47 in
Hole Diameter
0.2 in
Inside Diameter (In.)
0.23
Outer Diameter (In.)
0.32
Wire Strip Length (In.)
45123
Description
Ring Terminal, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Operating Temperature 302 Degrees F, Maximum Voltage 2,000 V, Minimum Wire Size 6 AWG, Maximum Wire Size 6 AWG, Termination Style Crimp, Tongue Width 0.47 in, Contact Finish Tin, Contact Material Copper, UL 94 Flammability Rating Not Applicable, Standards CSA Certified LR31212, UL Listed 587H E52164, Barrel Inside Diameter 0.23 in, Barrel Length 0.49 in, Barrel Outside Diameter 0.23 in
