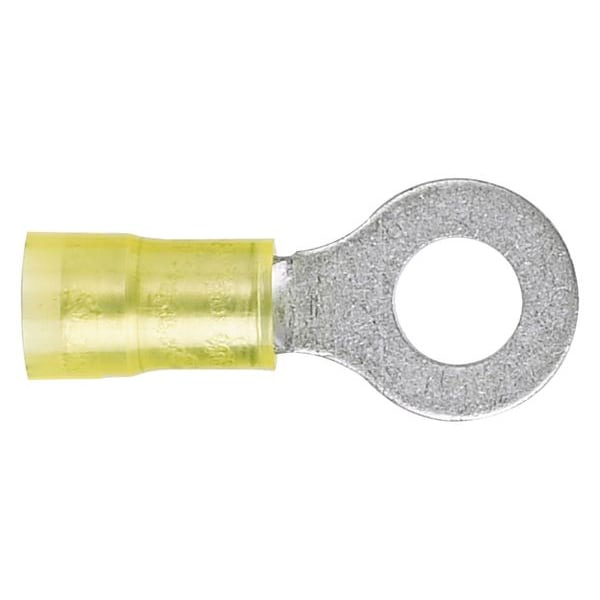

Ring Terminal, #8 Stud Size, 10 AWG, 600 V, Nylon Insulated, Yellow, Crimp Termination Only, 500 PK
Mfr # PN10-8R-D
Zoro # G0287345
product price:Â
$
257.99
/pk of 500, $0.52/ea
Free Shipping & Returns
Key Features
Terminal Shape
Ring
Termination Style
Crimp Termination Only
Insulation Color
Yellow
Maximum Wire Size
10 AWG
Minimum Wire Size
12 AWG
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- PN10-8R-D
- Zoro #
- G0287345
- UPC #
- 074983800315
- Country of Origin
- Mexico
Dimensions
- Maximum Wire Size
- 10 AWG
- Minimum Wire Size
- 12 AWG
- Stud Size
- #8
- Tongue Width - Wire Connector
- 0.37 in
- Overall Length
- 1.06 in
- Width
- 0.4"
- Tongue Width
- 0.37 in
- Tongue Thickness
- 0.04 in
- Strip Length
- 1/4 in
- Hole Diameter
- 0.17 in
- Maximum Wire Insulation Diameter (In.)
- 0.225
- Maximum Metric Conductor Size (mm²)
- 6
- Minimum Metric Conductor Size (mm²)
- 4
- Wire Strip Length (In.)
- 11933
- Wire Rope Length
- 1.06 in
- Length
- 1.06 in
Description
Ring Terminal, Insulation Color Yellow, Insulation Coverage Partial Coverage, Insulation Material Nylon, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 12 AWG, Maximum Wire Size 10 AWG, Termination Style Crimp, Tongue Width 0.37 in, Contact Finish Tin, Contact Material Copper, UL 94 Flammability Rating HB, Standards CSA C22.2 No. 65, UL 486A, UL 486B, Barrel Style Insulation Grip, Compatible Grainger Part Number 376T26, 376U11, 376V66, 38YU61
