Shop PANDUIT

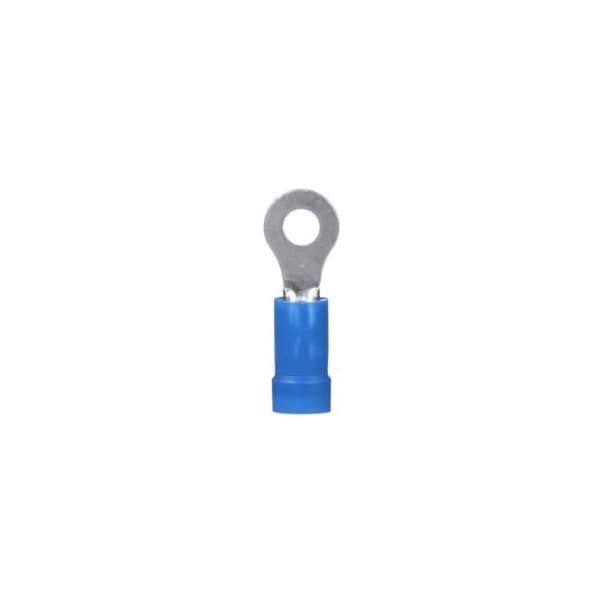

Ring Terminal, PK 1000

  • Mfr # PV14-6R-M

  • Zoro # G816539098

product price:  $253.99
/pk 1000, $0.25/ea
Free Shipping & Returns

Key Features

Strip Length
3/8 in
Tongue Width
0.31 in
Series
PV14
Insulation Material
Vinyl
Seam Style
Brazed
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
PV14-6R-M
Zoro #
G816539098
UPC #
074983801176
Country of Origin
Mexico

Dimensions

Strip Length
3/8 in
Tongue Width
0.31 in
Maximum Wire Size
14 AWG
Hole Diameter
0.15 in
Minimum Wire Size
16 AWG
Stud Size
#6
Barrel Inside Diameter
0.17 in
Overall Length
0.92 in
Tongue Thickness
0.03 in

Details

Item
Wire Terminal
Series
PV14
Insulation Material
Vinyl
Seam Style
Brazed
Termination Style
Crimp Termination Only
Barrel Style
Brazed Funnel Entry
Maximum Voltage
600 V
Compatible with Product Type
Crimp Tools, Crimpers
Standards
CSA Certified LR31212, cULus Listed 587H E52164
Special Features
Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength
Contact Finish
Tin
Insulation Color
Blue
Terminal Shape
Ring
Contact Material
Copper
Hole Spacing
0.16 in
Compatible Manufacturer Model Number
CT-100B, CT-1550, CT-1551, CT-2300, CT-2500 (CT-2550CH)
Maximum Operating Temperature
221 Degrees F
Insulation Coverage
Partial Coverage
Insulation Type
Vinyl

Description

Ring Terminal, Insulation Color Blue, Insulation Material Vinyl, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 16 AWG, Maximum Wire Size 14 AWG, Termination Style Crimp, Tongue Width 0.31 in, Contact Finish Tin, Contact Material Copper, Standards CSA LR31212, cULus 587H E52164, UL 486A/B, Barrel Inside Diameter 0.17 in, Barrel Style Brazed Funnel Entry, Compatible Grainger Part Number 376T26, 376U11, 38YU61
