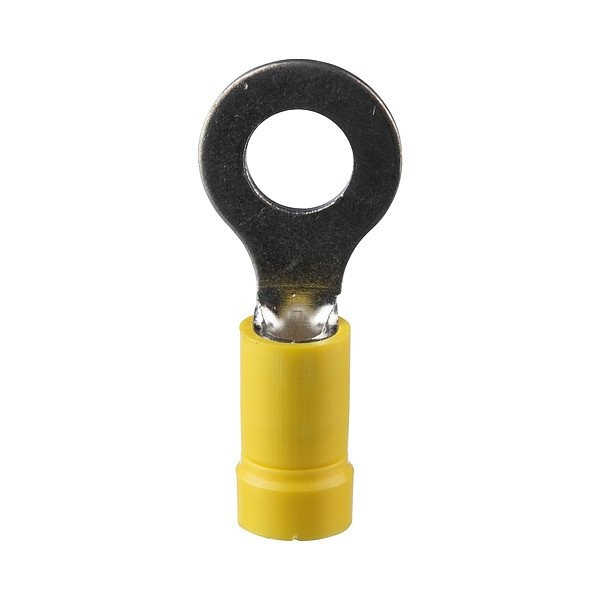

Ring Terminal, PK 25

  • Mfr # EV10-14RB-Q

  • Zoro # G621952624

product price:  $35.95
/pk 25, $1.44/ea

Key Features

Barrel Outside Diameter
0.23 in
Hole Spacing
0.26 in
Contact Material
Copper
Standards
CSA Certified LR31212, UL Listed 587H E52164
Barrel Style
Butted Funnel Entry
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
EV10-14RB-Q
Zoro #
G621952624
UPC #
074983281862
Country of Origin
Mexico

Dimensions

Barrel Outside Diameter
0.23 in
Tongue Length
0.62 in
Overall Length
1.23 in
Tongue Width
0.52 in
Hole Diameter
0.27 in
Strip Length
3/8 in
Barrel Length
0.49 in
Maximum Wire Size
10 AWG
Tongue Thickness
0.04 in
Barrel Inside Diameter
0.23 in
Minimum Wire Size
12 AWG
Stud Size
1/4 in

Details

Hole Spacing
0.26 in
Contact Material
Copper
Standards
CSA Certified LR31212, UL Listed 587H E52164
Barrel Style
Butted Funnel Entry
Insulation Material
Vinyl
Special Features
Insulated Ring Terminals are a Reliable and Economical Option That withstand a Wide Range of General-purpose Applications
Insulation Color
Yellow
Series
EV10
Terminal Shape
Ring
Compatible with Product Type
Crimp Tools, Crimpers, Wire Strippers
Item
Ring Terminal
Seam Style
Butted
Contact Finish
Tin
Compatible Manufacturer Model Number
CT-100A, CT-1550, CT-1551, CT-2500 (CT-2550CH), CT-600-A (CT-550CH)
Maximum Voltage
600 V
Insulation Coverage
Partial Coverage
Termination Style
Crimp
Maximum Operating Temperature
221 Degrees F
Insulation Type
Vinyl

Description

StrongHold(TM) EV10-14RB-Q Ring Terminal, Insulation Color Yellow, Insulation Material Vinyl, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 12 AWG, Maximum Wire Size 10 AWG, Tongue Width 0.52 in, Contact Finish Tin, Contact Material Copper, Standards CSA LR31212, UL 587H E52164, Barrel Inside Diameter 0.23 in, Barrel Length 0.49 in, Barrel Outside Diameter 0.23 in, Barrel Style Butted Funnel Entry, Compatible Grainger Part Number 376U11, 38YU60, 38YU61
