  11. Two-Hole Compression Lug, 1/0 AWG Max, Long Barrel, Copper, Pink

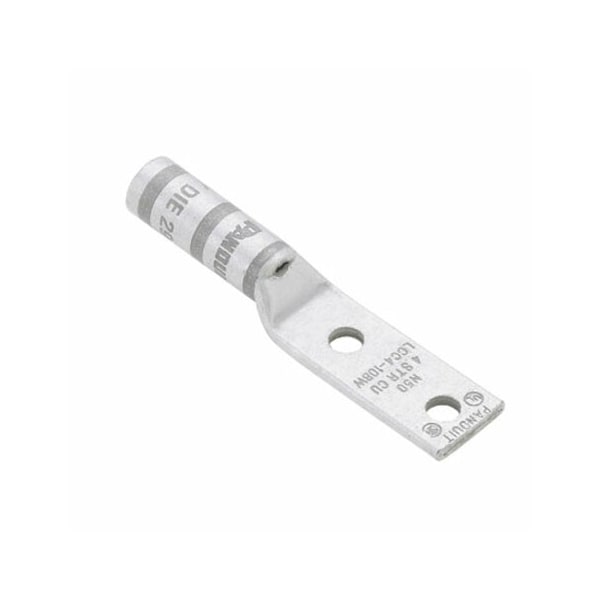

Panduit Two-Hole Compression Lug, 1/0 AWG Max, Long Barrel, Copper, Pink LCCX1/0-14A-X - main

Two-Hole Compression Lug, 1/0 AWG Max, Long Barrel, Copper, Pink

  • Mfr # LCCX1/0-14A-X

  • Zoro # G0776863

product price: $12.99
/ea

Key Features

Cable Size
1/0 AWG
Connector Type
Long Barrel
Width
0.85"
Material
Copper
Length
3.23"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LCCX1/0-14A-X
Zoro #
G0776863
UPC #
7498342570
Country of Origin
Mexico

Dimensions

Cable Size
1/0 AWG
Width
0.85"
Length
3.23"
Overall Length
3.23 in
DLO Copper Flex Conductor Size (AWG)
36526
Class K Copper Flex Conductor Size (AWG)
36526
Tongue Width (In.)
0.85
Copper Code Conductor Size (AWG)
36526
Class M Copper Flex Conductor Size (AWG)
36526
Barrel Length (mm)
38.1
Stud Hole Size (In.)
44930
Barrel Length (In.)
1.5
Class G Copper Flex Conductor Size (AWG)
36526
Overall Length (mm)
82
Wire Strip Length (mm)
40
Class H Copper Flex Conductor Size (AWG)
36526
Tongue Thickness (In.)
0.13
Class I Copper Flex Conductor Size (AWG)
36526
Overall Length (In.)
3.23
Tongue Thickness (mm)
3.3
Wire Strip Length (In.)
1.56
Stud Hole Size (mm)
6.4
Tongue Width (mm)
21.6
For Wire Size
1/0 AWG
Tongue Width
0.85 in
Barrel Size
Long

Details

Connector Type
Long Barrel
Material
Copper
Color Code
Pink
Item
Two-Hole Compression Lug
Die Code
12
Features
Corrosion Resistant
Connection Type
1 x Terminal
Connection Material
Tin
Burndy Die Index Number
12
Panduit Die Index Number
P42
Maximum Voltage (kV)
35
Stud Hole Spacing (In.)
0.63
UL Temperature Rating (°C)
90
Product Type
Compression Connectors - Lugs
Finish/Coating
Tin-Plated
Stud Hole Spacing (mm)
16
Base Material
Copper
Tongue Type
Standard
Connector Details
1 x Terminal
Product Material
Copper
Connector Plating
Tin
Product Name
Terminal Connector
Product Class
Wire Termination
For Conductor Material
Copper

Description

Lug Compression Connector,1/0 AWG
