  11. Two-Hole Compression Lug, 2/0 AWG Max, Standard Barrel, Copper, Black

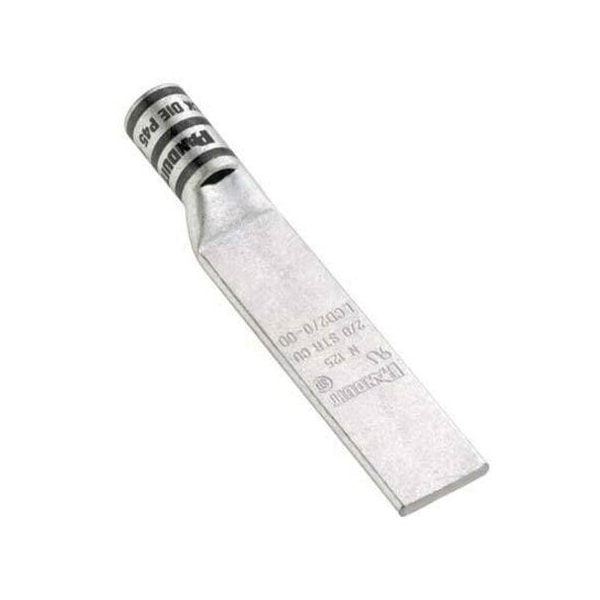

Panduit Two-Hole Compression Lug, 2/0 AWG Max, Standard Barrel, Copper, Black LCD2/0-00-X - main

Two-Hole Compression Lug, 2/0 AWG Max, Standard Barrel, Copper, Black

  • Mfr # LCD2/0-00-X

  • Zoro # G0777231

product price: $15.15
/ea

Key Features

Cable Size
2/0 AWG
Connector Type
Standard Barrel
Width
0.85"
Material
Copper
Length
4.3"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LCD2/0-00-X
Zoro #
G0777231
UPC #
7498390093
Country of Origin
Mexico

Dimensions

Cable Size
2/0 AWG
Width
0.85"
Length
4.3"
Overall Length
4.3 in
Copper Code Conductor Size (AWG)
36557
Wire Strip Length (In.)
1.06
Tongue Width (In.)
0.85
Wire Strip Length (mm)
27
Tongue Thickness (In.)
0.13
Overall Length (In.)
4.3
Overall Length (mm)
109.2
Barrel Length (mm)
24.9
Tongue Thickness (mm)
3.3
Barrel Length (In.)
0.98
Tongue Width (mm)
21.6
For Wire Size
2/0 AWG
Barrel Size
Standard
Tongue Width
0.85 in

Details

Connector Type
Standard Barrel
Material
Copper
Color Code
Black
Item
Two-Hole Compression Lug
Die Code
13
Connection Type
1 x Terminal
Connection Material
Tin
Features
Corrosion Resistant
Maximum Voltage (kV)
35
Panduit Die Index Number
P45
Product Type
Compression Connectors - Lugs
Base Material
Copper
UL Temperature Rating (°C)
90
Tongue Type
Standard
Finish/Coating
Tin-Plated
Burndy Die Index Number
13
Product Name
Terminal Connector
Connector Details
1 x Terminal
Product Material
Copper
Connector Plating
Tin
Product Class
Wire Termination
For Conductor Material
Copper

Description

Lug Compression Connector,2/0 AWG

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
