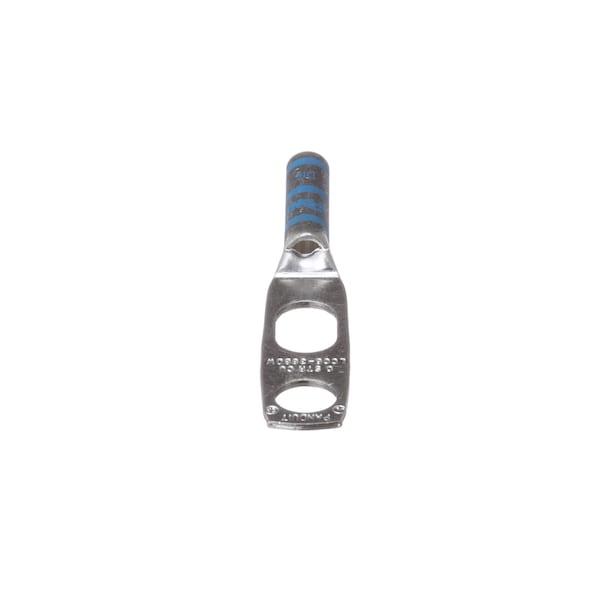

Two-Hole Compression Lug, 6 AWG Max, 1 in Stud, Long Barrel, Copper, Blue
Mfr # LCC6-38BDW-L
Zoro # G904859633
product price:Â
$
9.45
/ea
Key Features
For Wire Size
6 AWG
For Conductor Material
Copper
For Stud Size
1 in
Material
Copper
Barrel Size
Long
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- LCC6-38BDW-L
- Zoro #
- G904859633
- UPC #
- 7498334510
- Country of Origin
- Mexico
Dimensions
- For Wire Size
- 6 AWG
- For Stud Size
- 1 in
- Barrel Size
- Long
- Tongue Width
- 0.62 in
- Overall Length
- 3.08 in
- Outside Dia.
- 0.31
- Inside Diameter (mm)
- 5.58
- Stud Hole Size (mm)
- 9.5
- Tongue Width (mm)
- 15.7
- Tongue Thickness (mm)
- 1.5
- Overall Length (mm)
- 78.2
- Outer Diameter (In.)
- 0.31
- Inside Diameter (In.)
- 0.22
- Overall Length (In.)
- 3.08
- Barrel Length (In.)
- 1.07
- Wire Strip Length (mm)
- 28.6
- Wire Strip Length (In.)
- 39448
- Copper Code Conductor Size (AWG)
- 6
- Stud Hole Size (In.)
- 44993
- Tongue Width (In.)
- 0.62
- Tongue Thickness (In.)
- 0.06
- Outer Diameter (mm)
- 7.87
- Barrel Length (mm)
- 27.2
Description
The LCC6-38BDW-L Tin-Plated Copper Compression Lug, two-hole, long barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The long barrel maximizes the number of crimps and provides premium wire pull-out strength and performance. The generously beveled wire entry prevents bent back strands when inserting the conductor into the barrel. UL Listed and CSA Certified.
Restrictions
WARNING:
Cancer and Reproductive Harm
For more information go to
www.P65Warnings.ca.gov
