  11. Two-Hole Compression Lug, 750 kcmil Max, Standard Barrel, Copper, Yellow

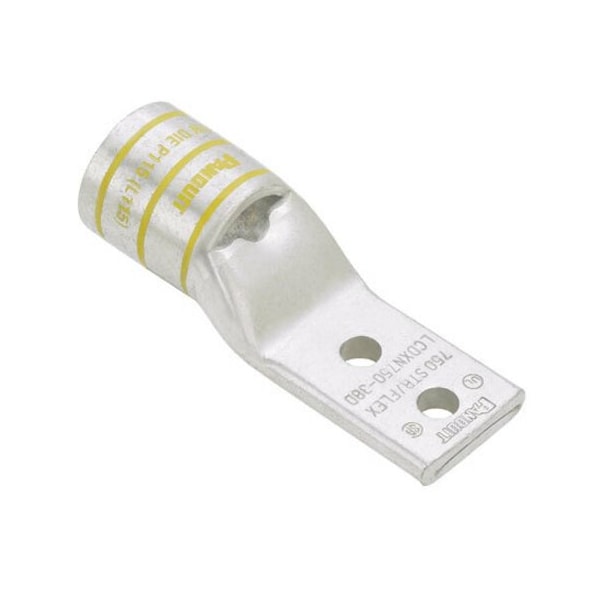

Panduit Two-Hole Compression Lug, 750 kcmil Max, Standard Barrel, Copper, Yellow LCDXN750-38D-3 - main

Two-Hole Compression Lug, 750 kcmil Max, Standard Barrel, Copper, Yellow

  • Mfr # LCDXN750-38D-3

  • Zoro # G0778108

product price: $94.69
/ea
Free Shipping & Returns

Key Features

Cable Size
750 kcmil
Connector Type
Standard Barrel
Width
1-1/2"
Material
Copper
Length
4.62"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LCDXN750-38D-3
Zoro #
G0778108
UPC #
7498344274
Country of Origin
Mexico

Dimensions

Cable Size
750 kcmil
Width
1-1/2"
Length
4.62"
Overall Length
4.62 in
Barrel Length (In.)
1.66
Tongue Width (mm)
38.1
Wire Strip Length (In.)
1.75
Stud Hole Size (In.)
44993
Overall Length (In.)
4.62
Stud Hole Size (mm)
9.5
Tongue Width (In.)
1.5
Wire Strip Length (mm)
45
Overall Length (mm)
117.4
Tongue Thickness (In.)
0.34
Barrel Length (mm)
42.2
DLO Copper Flex Conductor Size (kcmil)
750
Tongue Thickness (mm)
8.6
Barrel Size
Standard
Tongue Width
1.50 in
For Wire Size
750 kcmil

Details

Connector Type
Standard Barrel
Material
Copper
Color Code
Yellow
Item
Two-Hole Compression Lug
Standards
UL listed and CSA certified
Die Code
115
Features
Corrosion Resistant
Connection Material
Tin
Connection Type
1 x Terminal
Base Material
Copper
T & B Die Index Number
L115
UL Temperature Rating (°C)
90
Product Type
Compression Connectors - Lugs
Maximum Voltage (kV)
35
Panduit Die Index Number
P115
Tongue Angle
Straight
Stud Hole Spacing (In.)
1
Finish/Coating
Tin-Plated
Burndy Die Index Number
115
Tongue Type
Narrow
Stud Hole Spacing (mm)
25.4
Connector Plating
Tin
Product Name
Terminal Connector
Connector Details
1 x Terminal
Product Material
Copper
Product Class
Wire Termination
For Conductor Material
Copper
