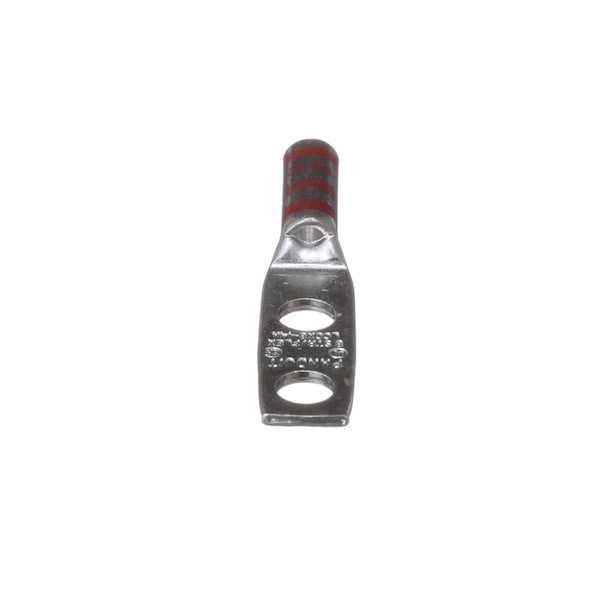

Two-Hole Compression Lug, 8 AWG Max, Long Barrel, Copper, Red
Mfr # LCCX8-14A-L
Zoro # G604859230
product price:Â $7.95
/eaKey Features
For Wire Size
8 AWG
For Conductor Material
Copper
Material
Copper
Barrel Size
Long
Tongue Width
0.48 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- LCCX8-14A-L
- Zoro #
- G604859230
- UPC #
- 7498342526
- Country of Origin
- Mexico
Dimensions
- For Wire Size
- 8 AWG
- Barrel Size
- Long
- Tongue Width
- 0.48 in
- Overall Length
- 2.1 in
- Outside Dia.
- 0.27
- Inside Diameter (mm)
- 4.57
- Stud Hole Size (mm)
- 6.4
- Barrel Length (mm)
- 17.8
- Copper Code Conductor Size (AWG)
- 8
- Wire Strip Length (mm)
- 19.1
- Barrel Length (In.)
- 0.7
- Tongue Width (In.)
- 0.48
- Overall Length (mm)
- 53.3
- Tongue Thickness (In.)
- 0.07
- DLO Copper Flex Conductor Size (AWG)
- 8
- Tongue Width (mm)
- 12.2
- Outer Diameter (mm)
- 6.85
- Overall Length (In.)
- 2.1
- Tongue Thickness (mm)
- 1.8
- Wire Strip Length (In.)
- 44989
- Stud Hole Size (In.)
- 44930
- Outer Diameter (In.)
- 0.27
- Inside Diameter (In.)
- 0.18
Description
The LCCX8-14A-L Tin-Plated Copper Compression Lug, two-hole, long barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The long barrel maximizes the number of crimps and provides premium wire pull-out strength and performance. The generously beveled wire entry prevents bent back strands when inserting the conductor into the barrel. UL Listed and CSA Certified.
Restrictions
WARNING:
Cancer and Reproductive Harm
For more information go to
www.P65Warnings.ca.gov
