Shop PANDUIT

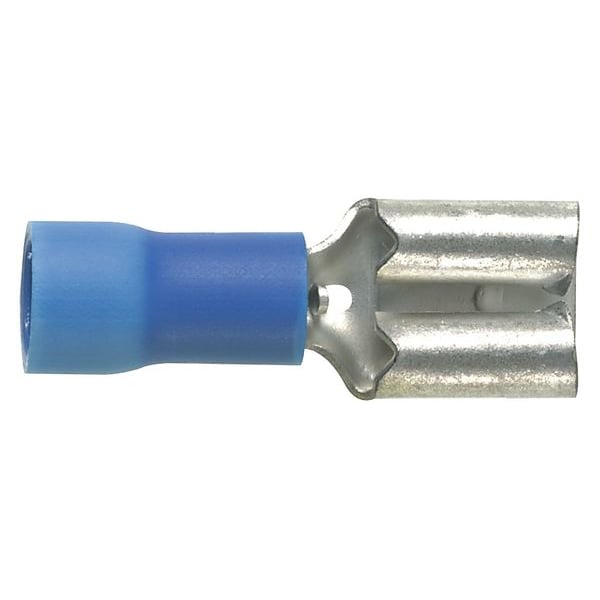

Wire Disconnect, Blue, Vinyl, PK100

  • Mfr # DV14-250B-C

  • Zoro # G0485740

product price:
$
92.19
/pk 100, $0.92/ea

Key Features

Insulation
Full
For Use With
CT-1525, CT-2300/ST (CD-525), CT-2500/L (CT-2525CH), UP14ZLW (CD-525)
Color Code
Blue
Insulation Type
Vinyl
Wire Range
16 to 14 AWG
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
DV14-250B-C
Zoro #
G0485740
UPC #
-
Country of Origin
Mexico
Item
Wire Disconnect
Insulation
Full
For Use With
CT-1525, CT-2300/ST (CD-525), CT-2500/L (CT-2525CH), UP14ZLW (CD-525)
Color Code
Blue
Insulation Type
Vinyl
Wire Range
16 to 14 AWG
Connection Type
Crimp
Seam
Butted
Connector Type
Quick Disconnect
Max. Voltage
600 V
Max. Temp.
221 Degrees F
Standards
CSA Certified LR31212, UL Listed 20H3 E78522, UL Recognized E78522
Connection Material
Tin-Plated Brass
Features
Flame Retardant
Disconnect Type
Female Disconnect
Finish/Coating
Tin-Plated
Tongue Angle
Straight
Base Material
Brass
Flammability Rating
UL94V-0
Standards Met
UL 310, CSA 22.2 No.153
Product Type
Disconnect
Maximum Voltage (V)
600
Insulation Material
Vinyl
Barrel Type
Funnel
Maximum Voltage (kV)
0.6
Maximum Operating Temperature (°F)
221
Maximum Operating Temperature (°C)
105
Connector Details
1 x Quick Disconnect
Product Color
Blue
Product Name
Terminal Connector
Contact Plating
Tin
Environmentally Friendly
Yes
Packaging Type
Bottle
Sub Brand
Pan-Term®
Maximum Operating Temperature (°F)
221
Maximum Operating Temperature (°C)
105
Special Features
Offering Secure Tool-Free Connections for Demanding Low-Voltage Projects
Maximum Voltage
600 V
Insulation Coverage
Partial Coverage
Seam Style
Butted
Terminal Type
Socket
Insulation Color
Blue
Disconnect Style
Quick Disconnect

Description

Wire Disconnect, Disconnect Style Quick Disconnect, Insulation Color Blue, Insulation Coverage Partial Coverage, Insulation Material Vinyl, Max. Operating Temp. 221 Degrees F, Minimum Wire Size 16 AWG, Maximum Wire Size 14 AWG, Maximum Voltage 600 V, Tab Thickness 0.032 in, Tab Width 0.25 in, Terminal Type Socket, Seam Style Butted, Standards CSA Certified LR31212, UL Listed 20H3 E78522, UL Recognized E78522, Barrel Style Not Applicable, Insulation Type Vinyl, Overall Length 0.81 in
